Pressure

A pressure gauge is an instrument used to measure the pressure of gases or liquids within a system. It provides a visual indication of pressure levels, typically in units such as pounds per square inch (psi), bar, or Pascal (Pa). Pressure gauges are essential for monitoring and maintaining safe and efficient operation in various applications, including hydraulic systems, pneumatic controls, boilers, and industrial processes.

The most common type is the Bourdon tube gauge, which uses a curved, flexible tube that straightens under pressure. This mechanical motion is translated into a dial reading. Other types include digital, diaphragm, and capsule gauges, each suited to specific pressure ranges and media.

Selecting the right gauge involves considering factors such as pressure range, fluid type, and temperature. Regular calibration and maintenance are important to ensure accuracy and reliability, especially in critical systems where pressure deviations can lead to safety issues or equipment damage.

Absolute pressure and gauge pressure are two ways of measuring pressure, but they reference different baselines. Absolute pressure is measured relative to a perfect vacuum (zero pressure). It includes atmospheric pressure in its measurement. This means absolute pressure is always positive and is commonly used in scientific calculations and high-precision applications such as vacuum systems or barometric measurements.

Gauge pressure, on the other hand, is measured relative to the surrounding atmospheric pressure. Most everyday pressure gauges, like those used in tires or water systems, measure gauge pressure. When a gauge reads zero, it actually means the pressure is equal to atmospheric pressure, not zero absolute pressure.

The relationship between them is: Absolute Pressure = Gauge Pressure + Atmospheric Pressure

Understanding this difference is important when selecting sensors or interpreting measurements, especially in processes where vacuum or pressurised systems are involved, to avoid errors or equipment damage due to incorrect pressure references.

Pressure can be measured in various units depending on the system and region. The Pascal (Pa) is the SI unit of pressure, defined as one newton per square meter (N/m²). Since the Pascal is relatively small, kilopascals (kPa) and megapascals (MPa) are commonly used in practical applications.

Another widely used unit is pounds per square inch (psi), especially in the United States. It measures the force in pounds applied over one square inch. Bar is another metric unit, where 1 bar equals 100,000 Pascals, commonly used in industrial and automotive applications.

Other units include atmospheres (atm), where 1 atm equals 101,325 Pa, which is the average atmospheric pressure at sea level. Millimeters of mercury (mmHg) and inches of mercury (inHg) are traditional units used in medical and meteorological fields. Choosing the correct unit depends on the application, industry standards, and required precision for pressure measurement.

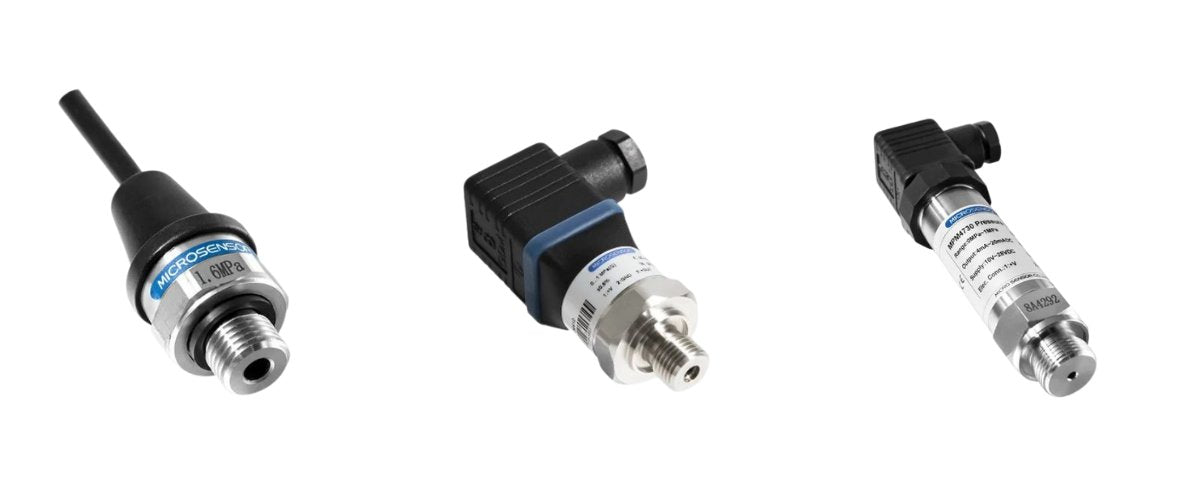

A pressure transmitter is an instrument used to measure the pressure of gases or liquids and convert that measurement into an electrical signal for monitoring and control. Unlike simple gauges, which only display pressure locally, transmitters provide accurate, real-time data that can be sent to control systems, displays, or remote monitoring equipment.

Pressure transmitters typically work by using a sensor element that detects pressure changes and converts them into a proportional electrical output, such as 4–20 mA or digital signals. This allows industries to maintain safe, efficient, and automated operations.

They are widely used in applications like oil and gas, water treatment, chemical processing, HVAC systems, and manufacturing. By monitoring pressure continuously, transmitters help protect equipment, improve process efficiency, and ensure safety.

In short, a pressure transmitter is a vital device for turning pressure readings into actionable information for reliable process control.

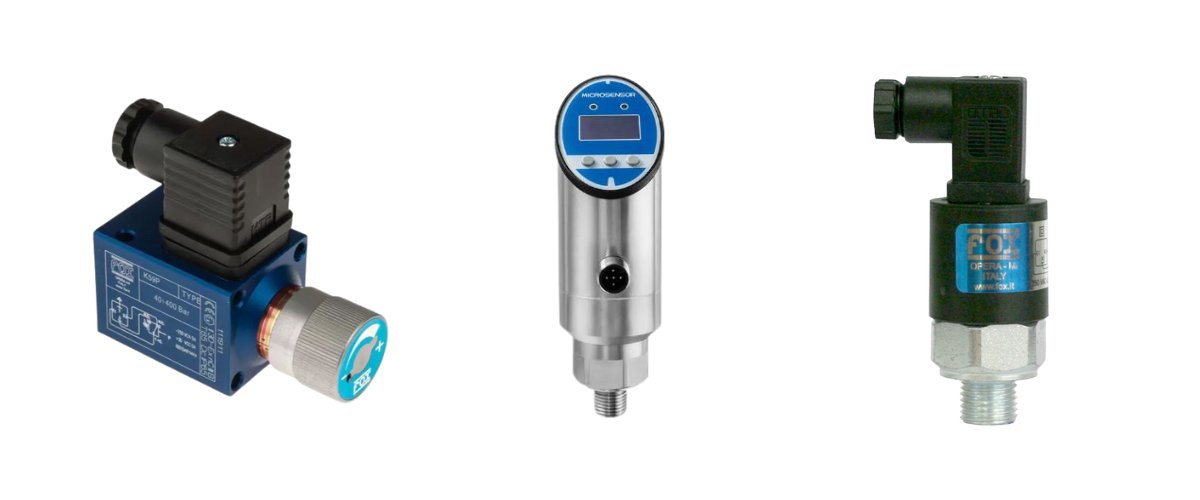

A pressure switch is a control device that monitors fluid or air pressure in a system and activates or deactivates equipment when a set pressure level is reached. Inside the switch, a sensing element such as a diaphragm, piston, or bourdon tube reacts to pressure changes. When the pressure crosses the pre-set threshold, it triggers an electrical contact to open or close, sending a signal to start or stop connected equipment.

Pressure switches are widely used to ensure safety, efficiency, and automation across many industries. For example, they control pumps in water systems, protect compressors from over-pressurization, and maintain proper pressure in HVAC equipment. They are also essential in hydraulic and pneumatic machinery, automotive applications, and industrial processes where stable pressure is critical. By providing automatic monitoring and response, pressure switches help prevent damage, reduce downtime, and keep operations running smoothly.

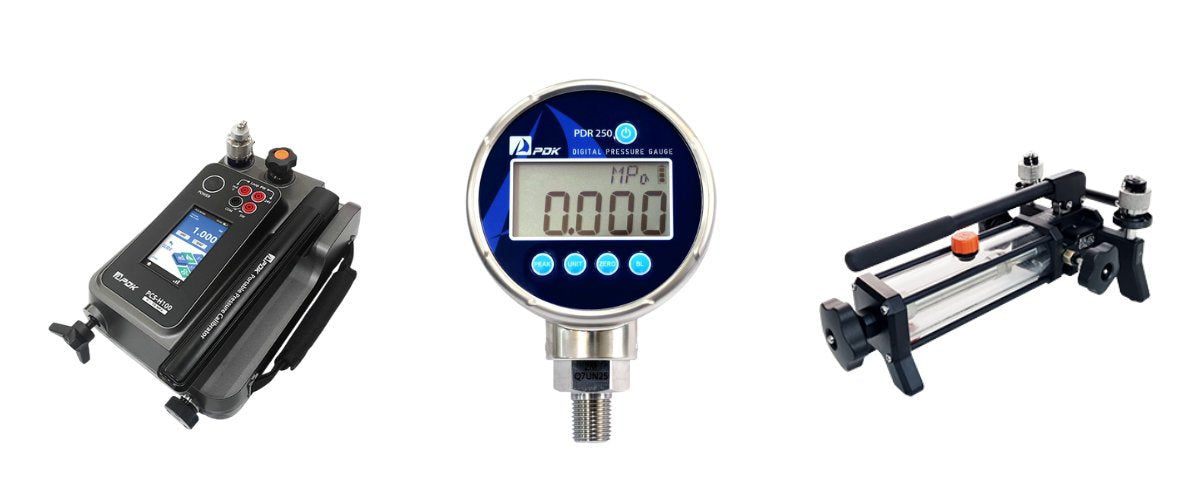

Calibration is the process of comparing a measuring instrument against a known reference standard to verify its accuracy and performance. In industrial environments, calibration ensures that equipment such as thermometers, pressure gauges, and sensors provide reliable readings that align with national or international measurement standards. This process identifies any deviations and, if necessary, adjusts the instrument to maintain compliance with specified tolerances. Regular calibration is essential for quality control, safety, and regulatory compliance across industries including manufacturing, pharmaceuticals, food processing, and energy. Without calibration, measurements may drift over time, leading to errors that impact product quality, efficiency, and safety. By establishing confidence in measurement accuracy, calibration supports consistent processes, reduces downtime, and helps businesses meet stringent industry standards and customer expectations.
