Temperature

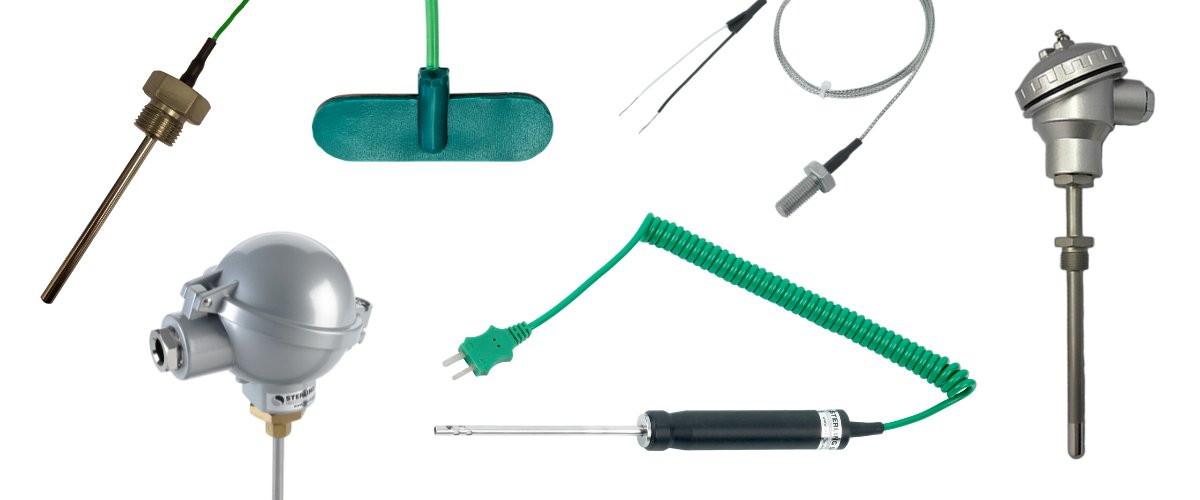

A thermocouple is a temperature-measuring device made from two dissimilar metal wires joined at one end, forming a junction. When this junction experiences a temperature change, it produces a small voltage due to the Seebeck effect. This voltage varies with temperature and can be measured to determine the temperature at the junction.

Thermocouples are widely used in various industries due to their durability, low cost, and the ability to measure a broad temperature range. Common types include Type K, J, T, and N, each are suited for specific temperature ranges and applications. They are often used in furnaces, engines, ovens and other industrial processes where temperature monitoring is essential.

Thermocouples do not require an external power source, making them easy to use and reliable. However, their accuracy can be influenced by electrical noise or incorrect calibration. Despite this, thermocouples remain one of the most popular tools for temperature sensing across many fields.

A thermocouple works based on the Seebeck effect, which states that when two dissimilar metals are joined at one end and there is a temperature difference between the joined end (hot junction) and the other ends (cold or reference junction), a small voltage is generated. This voltage is directly related to the temperature difference. Many temperature displays have a thermocouple circuit that measures this voltage and converts it into a temperature reading.

The hot junction is placed where temperature measurement is needed, while the cold junction is kept at a known reference temperature. Because different metal combinations produce different voltage responses, various types of thermocouples (such as Type K, J, or T) exist for different applications. Thermocouples are popular due to their wide temperature range, fast response time, and rugged design.

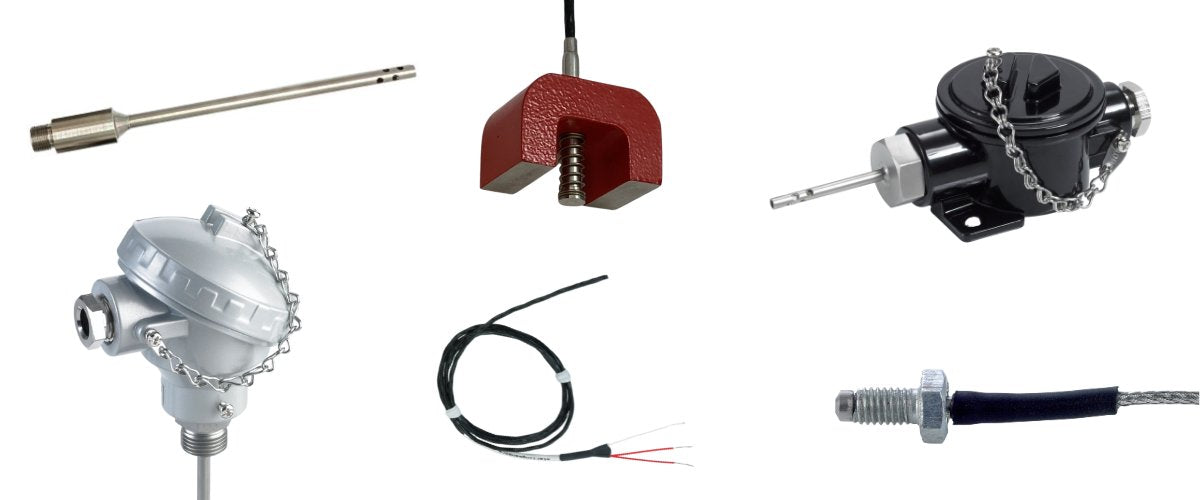

A Resistance Temperature Detector (RTD) is a precision temperature sensor designed for high accuracy and long-term stability. Using pure platinum, RTDs measure temperature by detecting changes in electrical resistance as heat varies. Known for their superior reliability and repeatability, RTD sensors are widely used in industries such as pharmaceuticals, energy, food processing, and aerospace, where precise temperature monitoring is critical. Compared to thermocouples, RTDs offer greater accuracy and stability over time, making them ideal for process control, laboratory and calibration applications. Available in wire-wound and thin-film designs, RTD probes can be customised for different environments and integrated into industrial systems. Their durability, consistency, and ability to perform across a wide temperature range make RTD temperature sensors the trusted choice for demanding applications.

The main difference between a Pt100 and a Pt1000 temperature sensor lies in their resistance values. A Pt100 has a resistance of 100 ohms at 0 °C, while a Pt1000 has 1,000 ohms at the same reference point. Both use platinum as the sensing element, ensuring high accuracy and stability, but their resistance levels affect performance in different applications. Pt100 sensors are widely used in industrial environments for process control and calibration due to their robustness and standardization. Pt1000 sensors, with higher resistance, are less sensitive to lead wire resistance and electrical noise, making them well-suited for precision measurement in smaller devices or longer cable runs. Choosing between Pt100 and Pt1000 depends on installation requirements, accuracy needs, and environmental conditions. Both provide reliable, repeatable temperature monitoring across critical industries.

A thermocouple and a Pt100 temperature sensor are both used to measure temperature, but they operate on different principles and are suited for different applications. A thermocouple consists of two dissimilar metals joined at one end, generating a voltage that varies with temperature due to the Seebeck effect. It is rugged, inexpensive, and can measure a wide temperature range (up to 1700°C), but it is less accurate and more prone to electrical noise.

In contrast, a Pt100 sensor is a type of resistance temperature detector (RTD) made from platinum, with a resistance of 100 ohms at 0°C. As temperature increases, its resistance changes in a predictable way. Pt100 sensors are more accurate and stable over time than thermocouples but are more expensive and generally limited to temperatures below 650°C.

In summary, thermocouples are ideal for high-temperature, rough environments, while Pt100 sensors are preferred where accuracy and stability are more important.

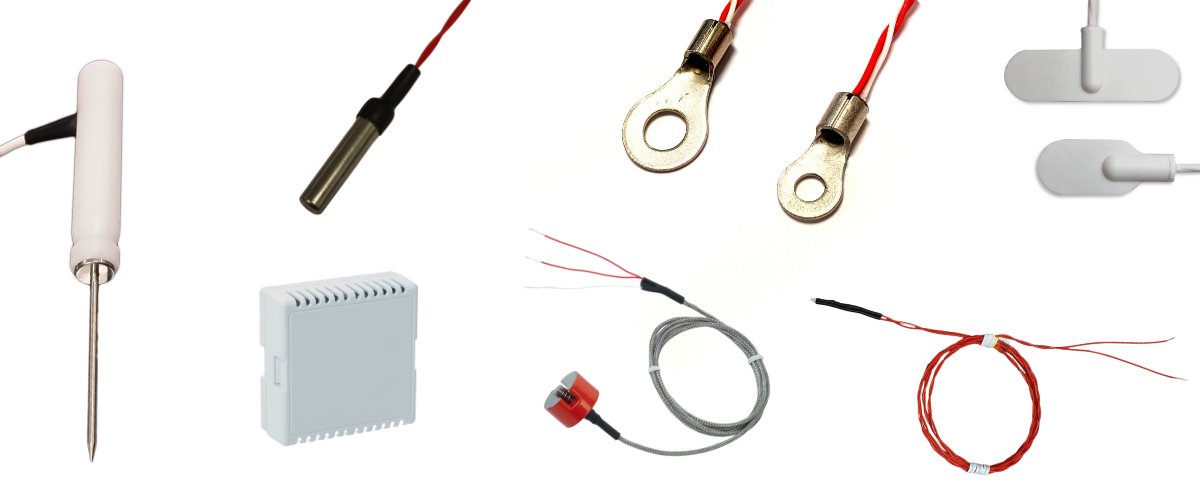

A thermistor is a type of temperature sensor whose resistance changes significantly with temperature. It’s made from semiconductor materials that are highly sensitive to temperature variations. There are two main types: NTC (Negative Temperature Coefficient) thermistors, where resistance decreases as temperature increases, and PTC (Positive Temperature Coefficient) thermistors, where resistance increases with temperature. Thermistors are commonly used in applications requiring precise temperature monitoring and control, such as HVAC systems, medical devices, automotive electronics, and consumer appliances. They are valued for their accuracy, fast response time, and compact size.
