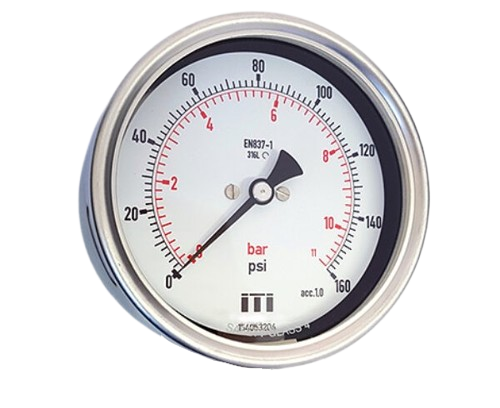

100mm (4 inch) Stainless Steel Pressure Gauge (Back Entry)

Roll over image to zoom in Click on image to zoom

100mm (4 inch) Stainless Steel Pressure Gauge (Back Entry)

Name: 100mm (4 inch) Stainless Steel Pressure Gauge (Back Entry)
Brand: ITI
SKU: SS/S/B/100/G38-15
Price: 69.0 GBP
Availability: InStock

ITISKU: SS/S/B/100/G38-15

The 100mm Bourdon tube pressure gauge is designed for precise pressure measurement and complies with EN 837-1 standards. Featuring 1.0% accuracy, a dual-scale psi and bar dial, and 316 stainless steel wetted parts, this industrial pressure gauge has a back entry process connection.

Thread: 3/8 BSPP

Range: 0/15 psi & 0/1 bar

Glycerine Filled: None

Variant

Price:

£69.00

Stock:

In stock, ready to be shipped

Quantity:

This high quality 100mm dial pressure gauge uses bourdon tube technology to measure pressure, typically up to 1000 bar.

The robust stainless steel gauge is suitable for a wide range of applications in the general process industry.

All gauges are manufactured in accordance with the requirements of the EN837-1 European standard.

For applications where you may have vibration we would recommend the optional liquid filling.

Accuracy (EN 837-1): Class 1.0 (+/- 1% FSD)

Case: 304 stainless steel with blowout and vent

Connection & Tube: 316 stainless steel

Case Protection: IP 65

Process Connection: Back

Window: Laminated safety glass

Dial: Aluminum, black ﬁgures, white background

Unit of Scale: psi & bar

Pointer: Aluminum, black

Custom versions and ranges up 4000 Bar are available by special request.

100mm (4 inch) Dial
Accuracy Class 1.0 (EN837-1)
-1 bar to 1000 Bar Ranges
All Stainless Steel Construction
316SS Wetted Parts
UKAS Traceable Calibration Available
