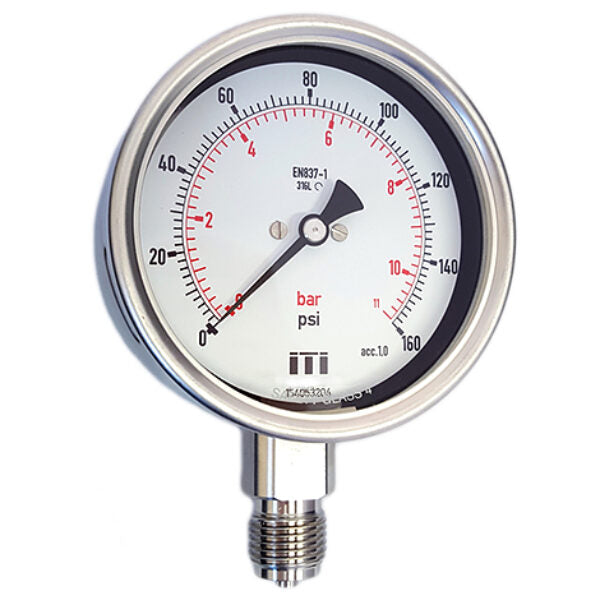

This high quality glycerine filled 100mm dial pressure gauge uses bourdon tube technology to measure pressure, typically up to 1000 Bar.
The robust stainless steel gauge is suitable for a wide range of applications in the general process industry.
All gauges are manufactured in accordance with the requirements of the EN837-1 European standard.
Suitable for applications where you may have vibration.
Accuracy (EN 837-1): Class 1.0 (+/- 1% FSD)
Case: 304 stainless steel with blowout and vent
Connection & Tube: 316 stainless steel
Case Protection: IP 65
Process Connection: Bottom
Window: Laminated safety glass
Dial: Aluminum, black figures, white background
Unit of Scale: PSI & Bar
Pointer: Aluminum, black
Custom versions and ranges up 4000 Bar are available by special request.
