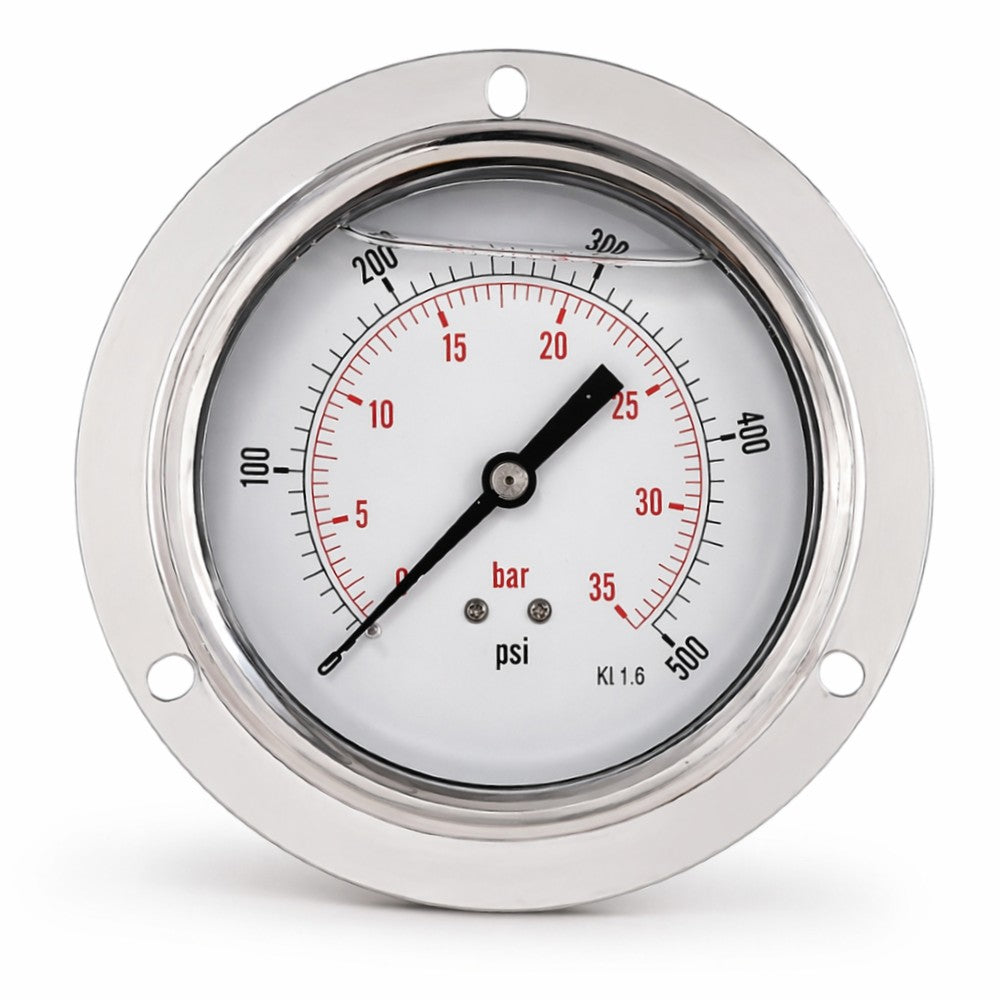

A low-cost 100mm pressure gauge that is glycerine filled. The gauge has a 3 hole front flange for panel mounting.
The brass process connection has a 22mm square block , with 3/8″ BSPP or 1/2 BSPP male back entry connection as standard.
Typical use would be on fluid liquids that have a temperature below 60C and gases (excluding oxygen or acetylene).
Glycerine filled gauges are particularly suitable for applications where oscillating pressure, surging pressure or vibration is present.
A damping effect due to the filling makes the pointer steady and easier to take an accurate reading.
Nominal Size: 100mm
Accuracy: +/- 1.6%
Scale: PSI outer (black) BAR inner (red)
Operating Temperature: -20/+60C
Ingress Protection: IP65
Case: 304 stainless steel
Window: Polycarbonate Clear
Pressure Element: CU alloy
Filling: High purity glycerine 99.5%
