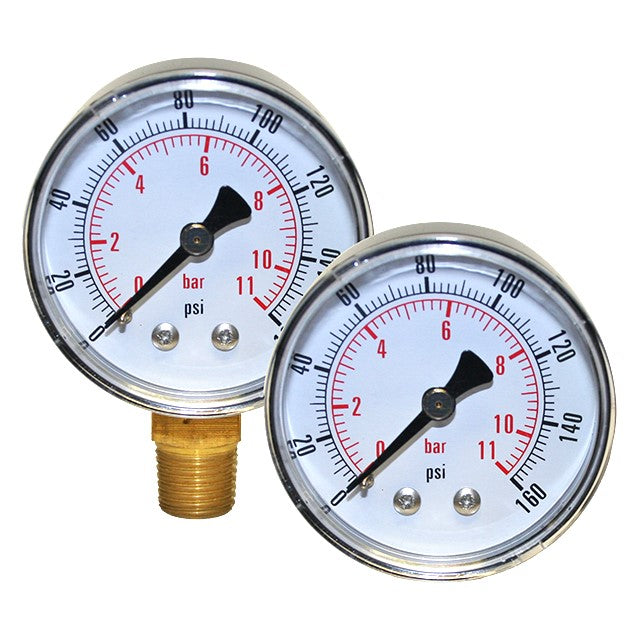

A low-cost 100mm pressure gauge with either bottom or centre back connection.
The brass process connection have am 17mm square block and a 3/8″ BSPP (parallel) male connection as standard.
Typical use would be on fluid liquids that have a temperature below 60C and gases (excluding oxygen or acetylene).
Applications such as pneumatics, air compressors, HVAC and water.
Nominal Size: 100mm
Accuracy: +/- 1.6%
Scale: BAR outer (black) PSI inner (red)
Operating Temperature: -20/+60C
Ingress Protection: IP40 as per EN 60529
Case: Enamelled steel black
Window: Acrylic clear
Pressure Element: CU all bourdon tube C type
Other process connections, scales and ranges available by request.
