10K NTC Thermistor Ring Lug Sensor (150°C)

Roll over image to zoom in Click on image to zoom

10K NTC Thermistor Ring Lug Sensor (150°C)

Name: 10K NTC Thermistor Ring Lug Sensor (150°C)
Brand: Sterling ITI
SKU: NFLUGTM0401M0AS7
Price: 14.0 GBP
Availability: InStock

Sterling ITISKU: NFLUGTM0401M0AS7

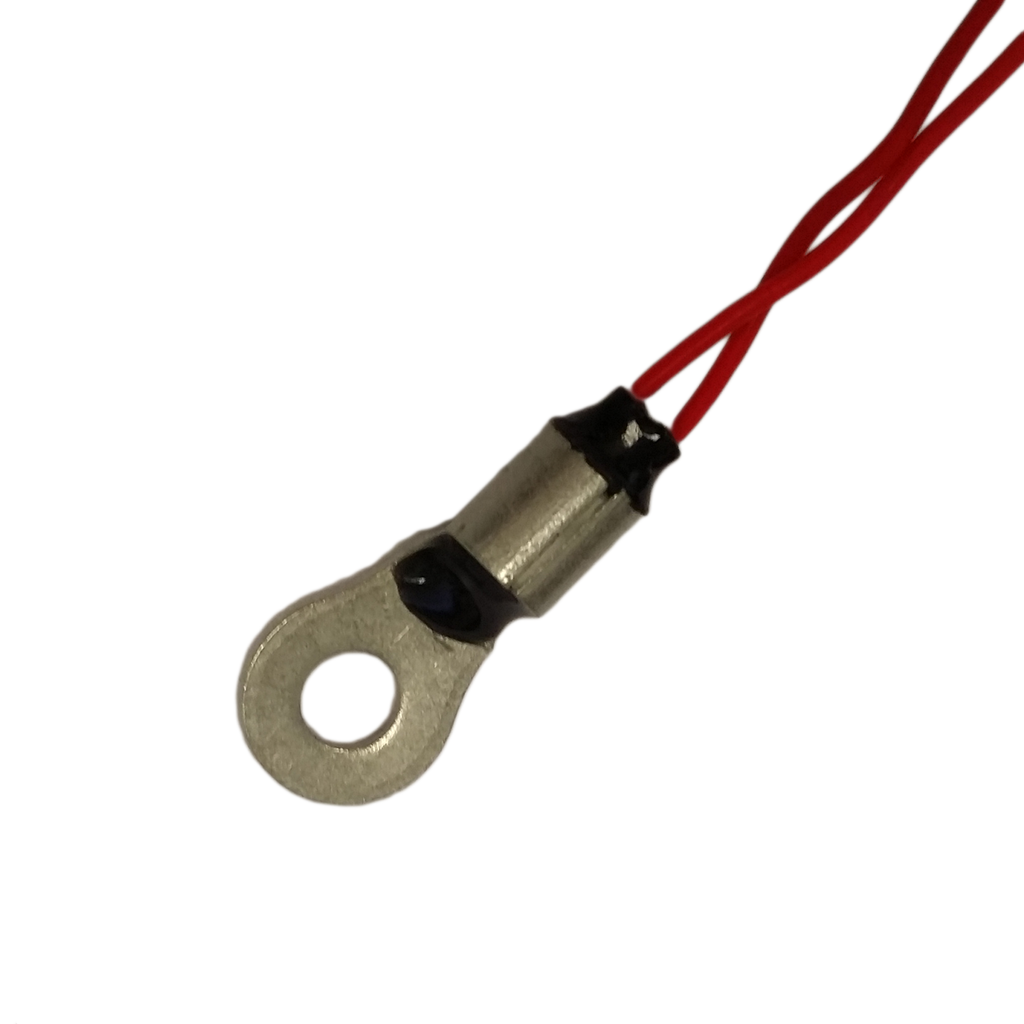

A Precision 10K NTC thermistor temperature sensor with ring terminal lug and flexible lead wire for surface mounting applications. Suitable for use up to 150°C.

Ring Size: M4

Lead Length: 1m

Variant

Price:

£14.00

Stock:

In stock

Quantity:

A Precision 10K NTC thermistor temperature sensor with ring terminal lug and flexible lead wire for surface mounting applications.

This range of temperature sensors is made with tin plated copper ring lug terminals for easy and secure surface mounting, available as standard for use with M4 & M6 studs. It has fast response and an interchangeable 10k thermistor element with excellent long term stability and accuracy.

These temperature sensors can be bespoke manufactured with many options for terminal sizes, lead wires and thermistor elements also available in 2.252k, 5k, 30k, 50k & 100kΩ.

Type: 10K NTC
Beta B25/85: 3977
Temp Range: -50 - 150 °C
Ring Lug: M4 or M6
Sheath Material: 316 Stainless Steel
Lead Wire Material: 7/0.2mm PFA Insulated
