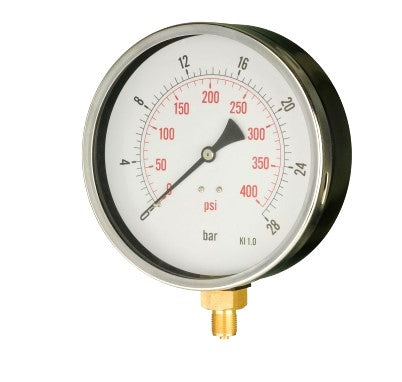

A low-cost 160mm pressure gauge with a direct bottom connection, and 1.0% accurcay.
The brass process connection have am 17mm square block and a 3/8″ or 1/2" BSPP (parallel) male connection as standard.
Typical use would be on fluid liquids that have a temperature below 60C and gases (excluding oxygen or acetylene).
Applications such as pneumatics, air compressors, HVAC and water.
Nominal Size: 160mm
Accuracy: +/- 1.0%
Scale: BAR outer (black) PSI inner (red)
Operating Temperature: -20/+60C
Ingress Protection: IP40 as per EN 60529
Case: Enamelled steel black
Bezel: Chrome plated steel
Window: Acrylic clear
Pressure Element: CU all bourdon tube C type
Other process connections, scales and ranges available by request.
