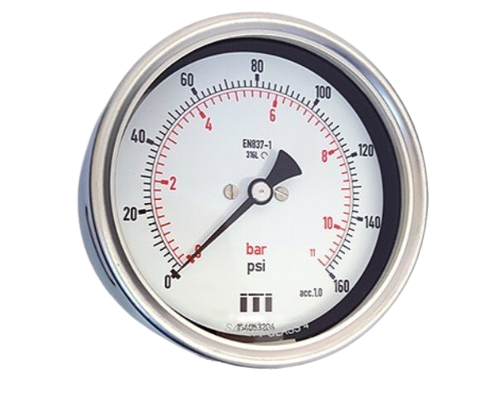

This high-quality 63mm dial stainless steel pressure gauge uses bourdon tube technology to measure pressure, typically up to 1000 Bar. Back entry process connection.
The robust stainless steel gauge is suitable for a wide range of applications in the general process industry.
The gauge is manufactured in accordance with the requirements of the EN837-1 European standard. For applications where you may have vibration we would recommend the optional liquid filling.
Accuracy (EN 837-1): Class 1.6 (+/- 1.6% FSD)
Case: 304 stainless steel with blowout and vent
Connection & Tube: 316 stainless steel
Case Protection: IP 65
Process Connection: Back
Window: Laminated safety glass
Dial: Aluminum, black figures, white background
Unit of Scale: PSI & Bar
Pointer: Aluminum, black
