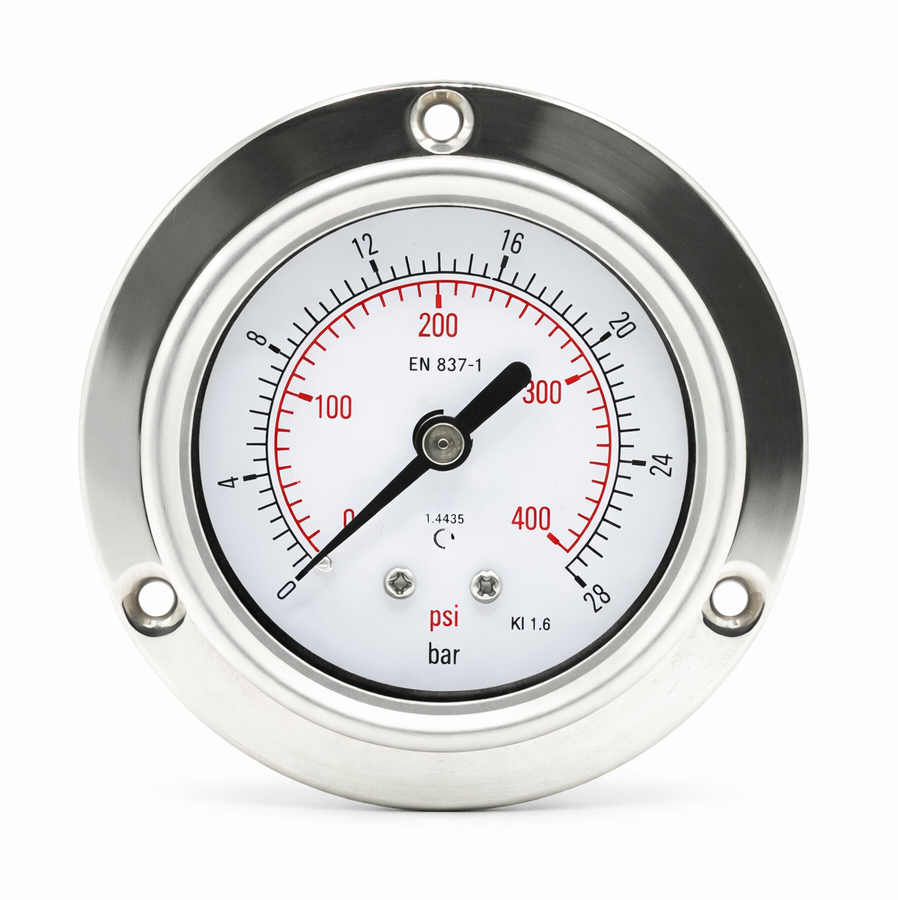

This high-quality 63mm dial stainless steel pressure gauge uses bourdon tube technology to measure pressure, typically up to 1000 Bar. Back entry process connection and a 3 hole front flange for panel mounting.
The robust stainless steel gauge is suitable for a wide range of applications in the general process industry.
The gauge is manufactured in accordance with the requirements of the EN837-1 European standard. For applications where you may have vibration we would recommend the optional liquid filling.
Accuracy (EN 837-1): Class 1.6 (+/- 1.6% FSD)
Case: 304 stainless steel with blowout and vent
Connection & Tube: 316 stainless steel
Case Protection: IP 65
Process Connection: Back
Window: Laminated safety glass
Dial: Aluminum, black figures, white background
Unit of Scale: PSI & Bar
Pointer: Aluminum, black
