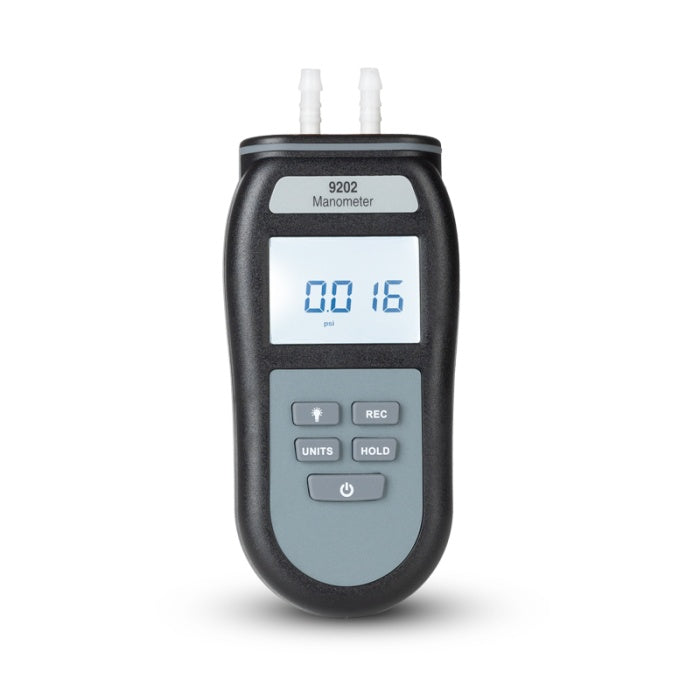

The 9202 digital manometer allows the user to measure positive and negative differential pressure over the range of -137.9 to 137.9 mbar with a resolution of 0.1 mbar and features over pressure protection to at least twice the measuring capacity.
These easy to use manometers are ideal for plumbers and gas engineers to measure domestic gas pressures and low pressure, non-corrosive air or gases in HVAC applications. The units can be used to measure air pressure in ductwork or pressure drops across filters to determine performance.
The 9202 manometer features a custom, LCD display with P1, P2, diff, hold, open circuit, low battery indication and a user selectable backlight. The unit incorporates an auto-power off facility that automatically turns the instrument off after approximately 25 minutes, maximising battery life. The 9202 pressure meter automatically compensates for changes in temperature.
Maximum, minimum and average measurements can be recorded by pressing the record button.
| Range & Resolution -PSI: |
range: ±2, resolution: 0.01 |
| Range & Resolution - In H2O: |
range: ±55.36, resolution: 0.01 |
| Range & Resolution - mbar: |
range: ±137.9, resolution: 0.1 |
| Range & Resolution - kPa: |
range: ±13.79, resolution: 0.01 |
| Range & Resolution - inHg: |
range: ±4.07, resolution: 0.001 |
| Range & Resolution - mmHg: |
range: ±103.4, resolution: 0.1 |
| Range & Resolution - ozin2: |
range: ±32.00, resolution: 0.01 |
| Range & Resolution - ftH2O: |
range: ±4.613, resolution: 0.001 |
| Max/Min: |
Yes |
| Range & Resolution - cmH2O: |
range: ±140.6, resolution: 0.1 |
| Range & Resolution - kgcm2: |
range: ±0.1406, resolution: 0.001 |
| Range & Resolution - bar: |
range: ±0.1379, resolution: 0.001 |
| Accuracy: |
±0.5%FS or Better (25°C) |
| Repeatability: |
±0.2 % (Max. 0.5 %FS) |
| Battery: |
3 x 1.5 volt AAA |
| Battery Life: |
100 hours |
| Dimensions: |
32 x 71 x 141 mm |
| Weight: |
185 grams |
Each unit is housed in a durable, ABS case that has an integrated rubber seal to ensure complete water tightness and help reduce the possibility of damage in harsh environments. Supplied complete with batteries, operation manual and two 500 mm long x 6 mm ID connection hoses.
