Bayonet thermocouple (400°C)

Name: Bayonet thermocouple (400°C)
Brand: Sterling ITI
SKU: TGBAYK4.702M0AS7
Price: 15.0 GBP
Availability: InStock

Sterling ITISKU: TGBAYK4.702M0AS7

Adjustable bayonet thermocouples for plastic extruders and extrusion machinery. Suitable for use up to 400°C.

Type: K

Sensing Tip: 4.7mm

Bayonet Cap: 11.5mm single slot

Variant

Price:

£15.00

Stock:

In stock

Quantity:

Adjustable bayonet thermocouples for plastic extruders and extrusion machinery.

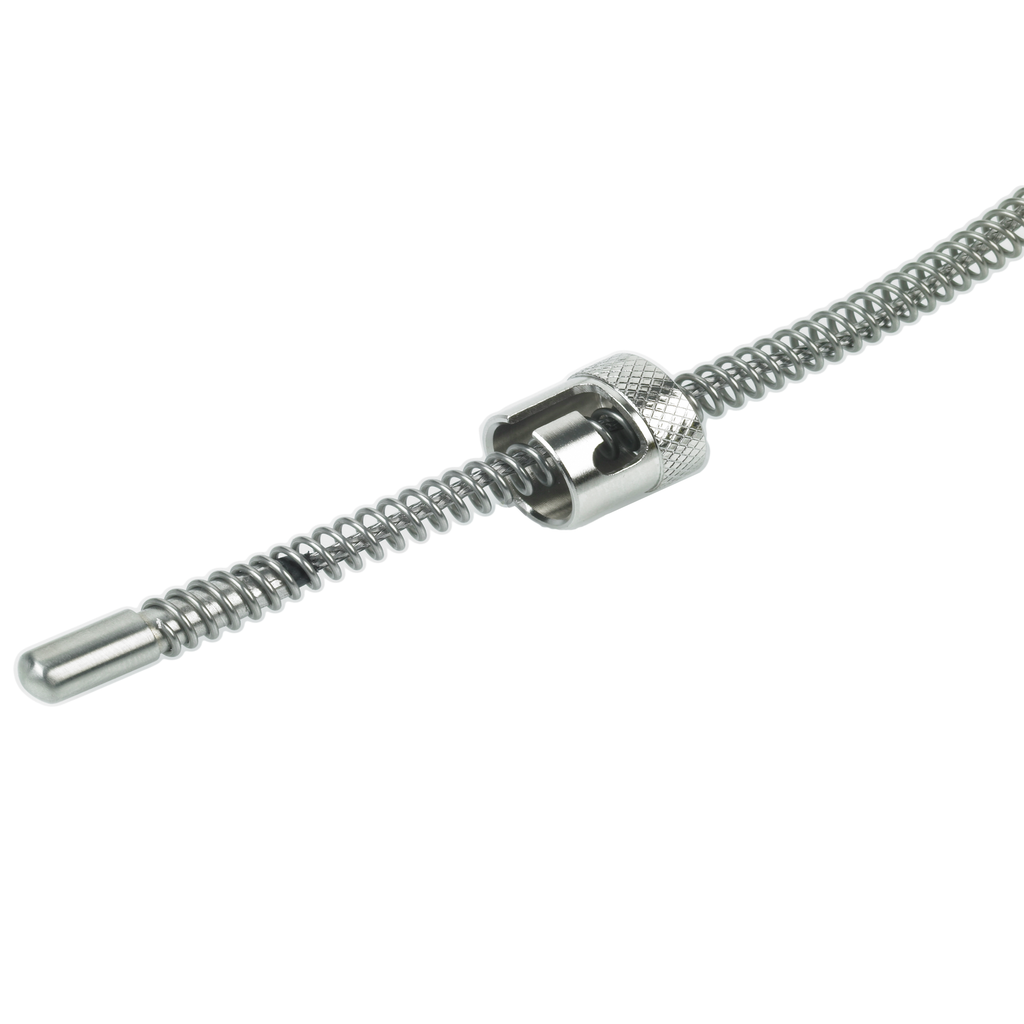

These spring loaded bayonet thermocouples have an adjustable screw threaded spring 200mm long with a single slot 11.5mm I.D fixing cap or a 12.5mm I.D double slot fixing cap to ensure a positive contact within the machine recess.

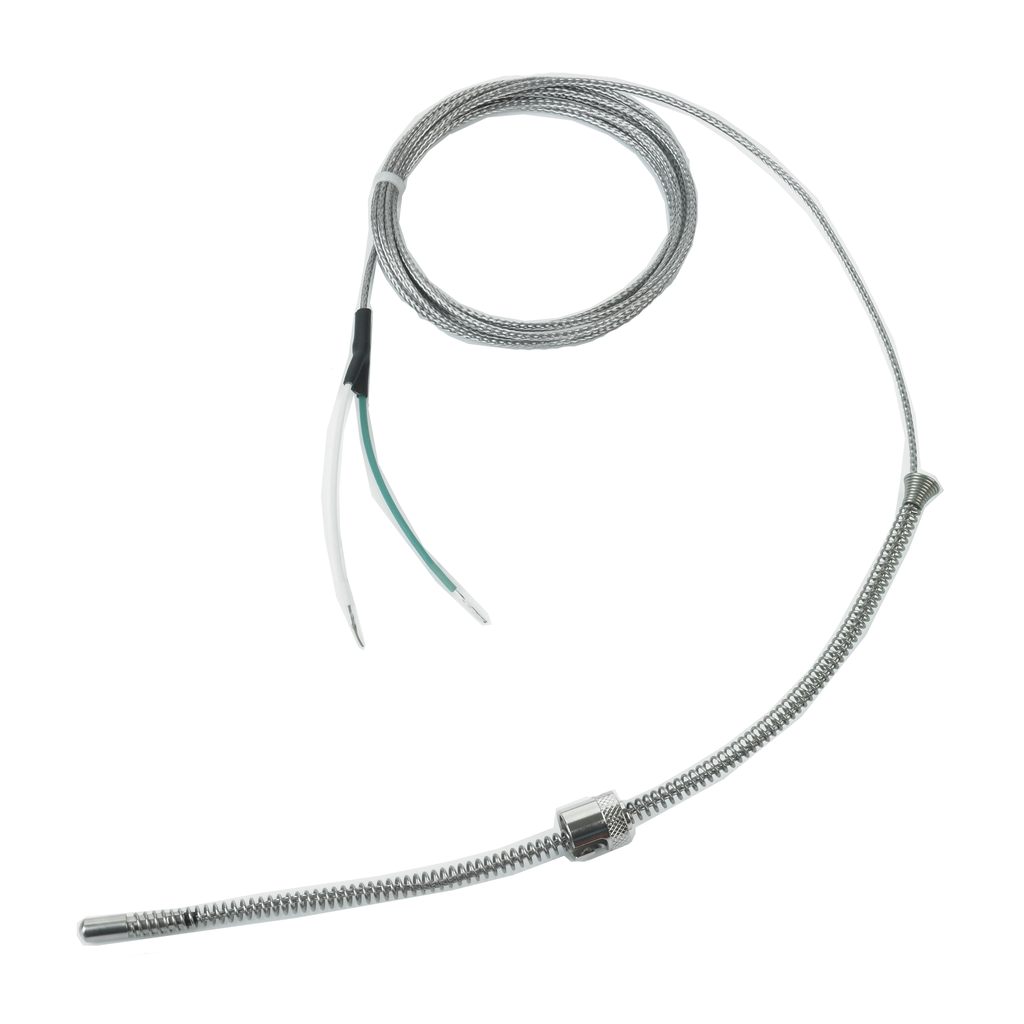

The thermocouple is available in type K or J housed in a 4.7mm (3/16”) or 6mm diameter stainless steel tip with a 2 metre glass fibre stainless steel overbraid lead wire.

Type: K or J
Temp Range: -75 - 400 °C
Tip diameter: 4.7mm or 6mm
Wire Material: Fibreglass with stainless overbraid
Termination: Tails
