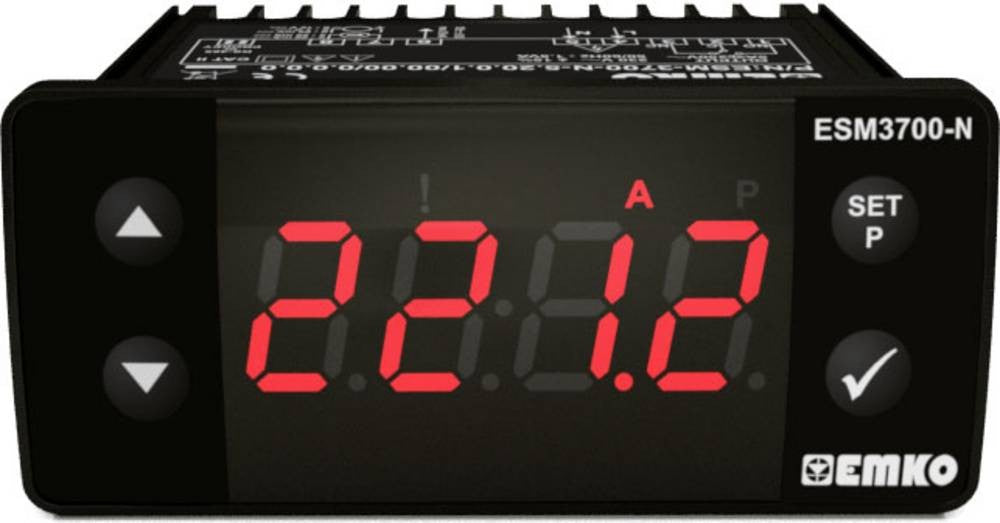

The EMKO ESM-3700-N is a versatile 4-digit panel-mounted process indicator designed for monitoring standard industrial analogue signals including 4–20 mA, 0–20 mA, 0–10 V, 0–1 V and 0–60 mV.
With a freely configurable display range from -1999 to 9999, adjustable decimal point and ±0.05% full-scale accuracy, the ESM-3700-N provides clear, reliable indication of temperature, pressure, level, flow and other process variables.
Key Features
- Universal selectable analogue process input
- 4-digit digital display
- Configurable display scaling from -1999 to 9999
- Adjustable decimal point
- Stores minimum and maximum measured values
- 5-stage analogue input filtering
- 5A relay output
- Front-panel adjustable alarm setpoint
- IP65 / NEMA 4X front protection
- Compact 77 × 35 mm panel format
A simple and flexible solution for displaying, scaling and monitoring industrial process signals.
Since 1986 EMKO ELEKTRONIK have been involved in the design, manufacture and sales of Measurement and Control Instruments, the full range of EMKO products are available through Sterling ITI in the UK.
