Thermocouple with Crimp Seal, 3mm (250°C)

Roll over image to zoom in Click on image to zoom

Thermocouple with Crimp Seal, 3mm (250°C)

Name: Thermocouple with Crimp Seal, 3mm (250°C)
Brand: Sterling ITI
SKU: TFCSEK3MM0501MP7
Price: 15.0 GBP
Availability: InStock

Sterling ITISKU: TFCSEK3MM0501MP7

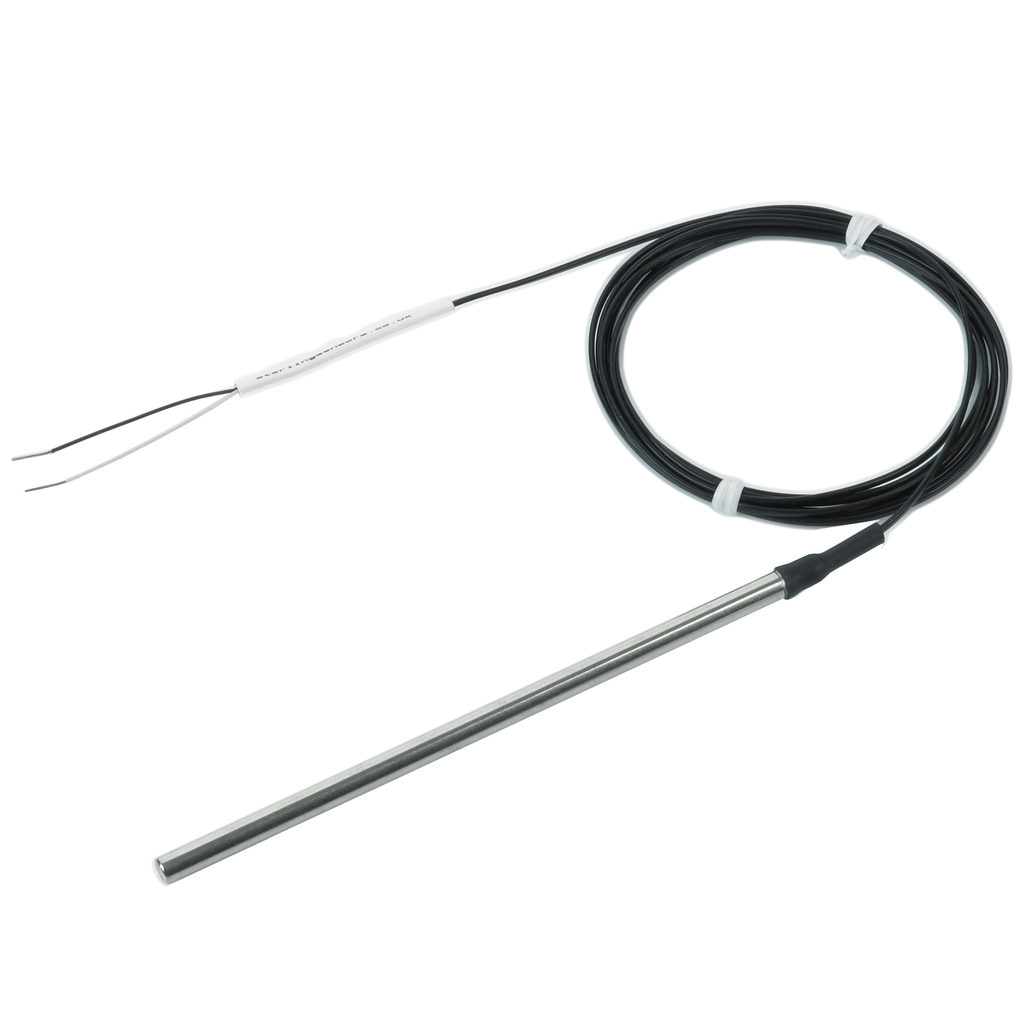

Low cost fabricated thermocouple with 3mm diameter 316 stainless steel sheath, crimp sealed and supplied with a PFA flexible lead wire. Suitable for use up to 250°C.

Sheath Length: 50mm

Lead Length: 1m

Type: K

Variant

Price:

£15.00

Stock:

In stock

Quantity:

Low cost fabricated thermocouple with 3mm diameter 316 stainless steel sheath, crimp sealed and supplied with a PFA flexible lead wire. Suitable for use up to 250°C.

This rigid stem probe is ideal for general purpose temperature measurement giving the element protection in air or liquids. It is supplied with a PFA lead wire crimp sealed with heat shrink strain relief for easy connection.

This sensor can be bespoke manufactured with many options for length, diameter and alternative lead wire materials.

Type: K, J or T
Temp Range: -75 - 250 °C
Diameter: 3mm
Sheath Material: 316 Stainless Steel
Lead Wire Material: 7/0.2mm PFA Insulated
