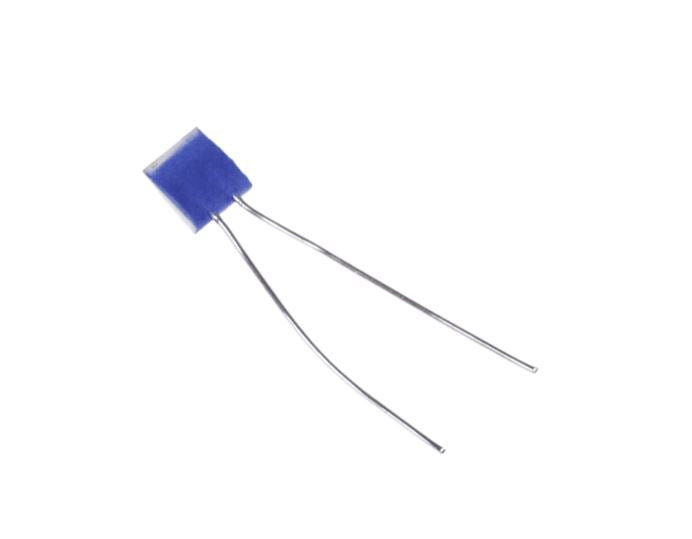

A range of Platinum thin-film RTD (resistance temperature detector) temperature sensors by Heraeus (Yageo Nexensos). The M-series Pt-RTDs are characterized by long-term stability and excellent precision over a wide temperature range.
Dimensions: 2.3 x 2.1 x 0.9 (L x W x H in mm)
Operating temperature range: -70 °C to +500 °C
Nominal resistance: 100 Ω at 0 °C
Characteristics curve: 3850
Typical drift: 0.04 % after 1000 hours at +500 °C
Tolerance class (dependent on temperature range): Class A, Class B or 1/3 DIN
Connection: Pt clad Ni-wire, Ø 0.2 mm, 10 mm long
Temperature Range of Tolerance Class:
(1/3 ) 0 °C to +150 °C
(A) -50 °C to +300 °C
(B) -70 °C to +500 °C
