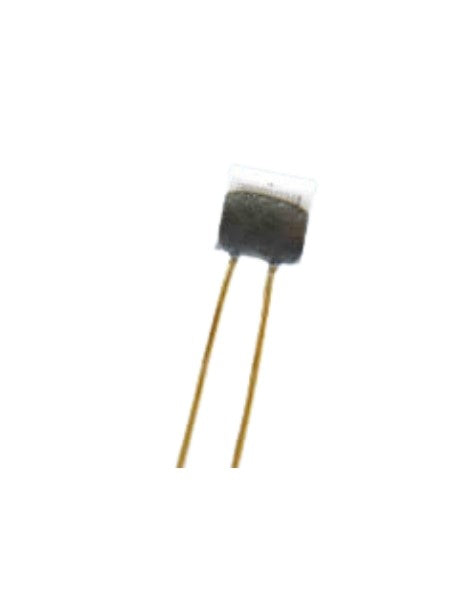

IST P0K1 RTD Pt100 Element 2mm x 2mm, Class A, 300C

Roll over image to zoom in Click on image to zoom

IST P0K1 RTD Pt100 Element 2mm x 2mm, Class A, 300C

Name: IST P0K1 RTD Pt100 Element 2mm x 2mm, Class A, 300C
Brand: Sterling ITI
SKU: P01K IST 2X2 A
Price: 3.5 GBP
Availability: InStock

Sterling ITISKU: P01K IST 2X2 A

A range of Platinum thin-film RTD (resistance temperature detector) temperature sensors by IST Innovative Sensor Technology. They are available in different classes of accuracies and various size options.

Tolerance : Class A

Variant

Price:

£3.50

Stock:

In stock

Quantity:

A range of Platinum thin-film RTD (resistance temperature detector) temperature sensors by IST Innovative Sensor Technology. They are available in different classes of accuracies and various size options.

Dimensions: 2 x 2 x 0.65 / 1.3 (L x W x H / H2 in mm)

Operating temperature range: -200 °C to +300 °C

Nominal resistance: 100 Ω at 0 °C

Characteristics curve: 3850

Long-term stability: < 0.04 % at 1000 h at maximal operating temperature

Tolerance class (dependent on temperature range): Class A, Class B or 1/3 DIN

Connection: Dimensions: Ni-wire Au-coated, Ø 0.2 mm, 10 mm long

2mm x 2mm Size
300C Series
Class B, Class A or 1/3 DIN
High quality & robust
ROHS Compliant
