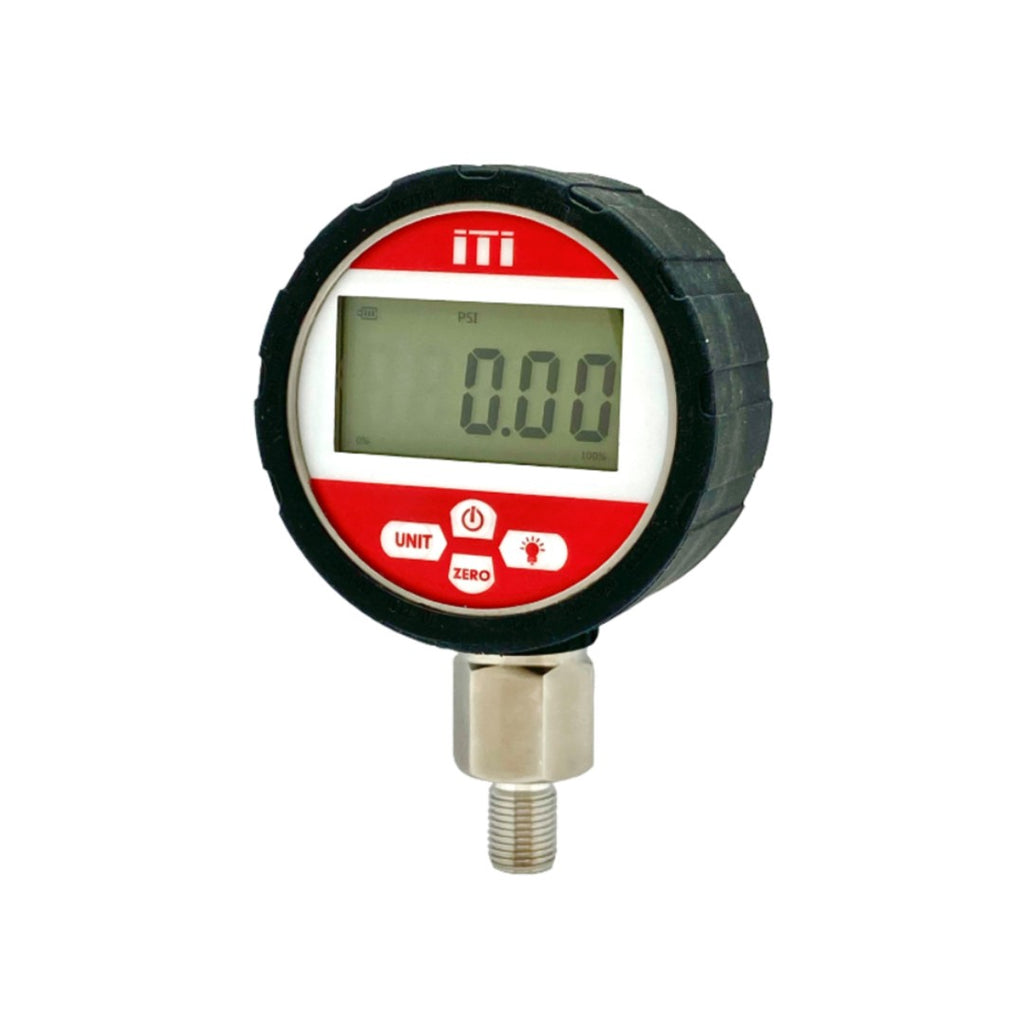

The ITI digital pressure gauge offers a 0.4% of full scale accuracy with a 1/4″ BSPP 316 stainless steel process connection. Every unit is supplied complete with a UKAS traceable calibration certificate.
It can be used to measure gas, liquid, oil and other non-corrosive mediums.
The gauge has a large LCD display and has various features such as zero clearing, backlight, on/off and selection of pressure units.
Selectable Range: bar, PSI, kPa, MPa, kg/cm2
Accuracy: 0.4% FS
Power: 2 x AAA battery (supplied)
Battery life: 12 month typical
Sampling Rate: 3 times/second
Operating Temperature: -20/60C
Process Connection: 316SS 1/4 BSPP (1/2 BSPP & BSPT optional)
Case Material: 304SS with rubber boot
Dimensions: 80mm case, 125mm overall height, 50mm wide
Overload capacity : 150%
Case/Boot : IP54
Resolution: Units up to 60 bar are 2 decimal places, 100 bar and above is 1 decimal place.
