Magnet Mount RTD (pt100 or Pt1000) Temperature Sensor

Roll over image to zoom in Click on image to zoom

Magnet Mount RTD (pt100 or Pt1000) Temperature Sensor

Name: Magnet Mount RTD (pt100 or Pt1000) Temperature Sensor
Brand: Sterling ITI
SKU: RSMAG630001MOAA7
Price: 46.0 GBP
Availability: InStock

Sterling ITISKU: RSMAG630001MOAA7

Magnetic mount resistance temperature detector with spring loaded tip for use in surface temperature measurement applications. Available in Pt100 or Pt1000 version. 6KG suitable for use up to 400°C. 3KG suitable for use up to 250°C.

Type: Pt100

Magnet Pull Force: 3kg

Length: 1m

Variant

Price:

£46.00

Stock:

In stock, ready to be shipped

Quantity:

Magnetic mount resistance temperature detector with spring loaded tip for use in surface temperature measurement applications. Available in Pt100 or Pt1000 version.

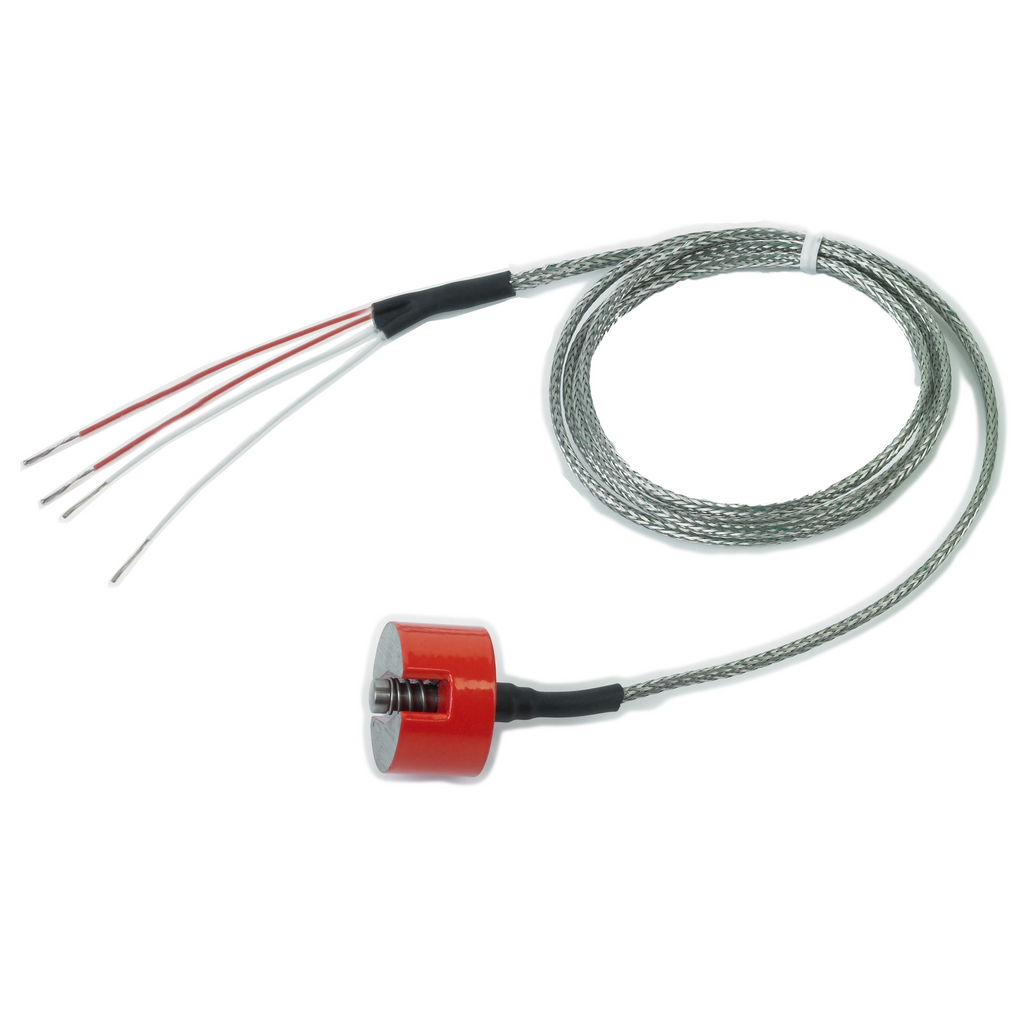

A 4-wire RTD with integral magnet designed for surface temperature measurement of ferrous metals. The magnet can be applied as a permanent sensor or ideally it can be positioned and easily moved. The spring loaded tip will ensure good connection with the surface to be measured.

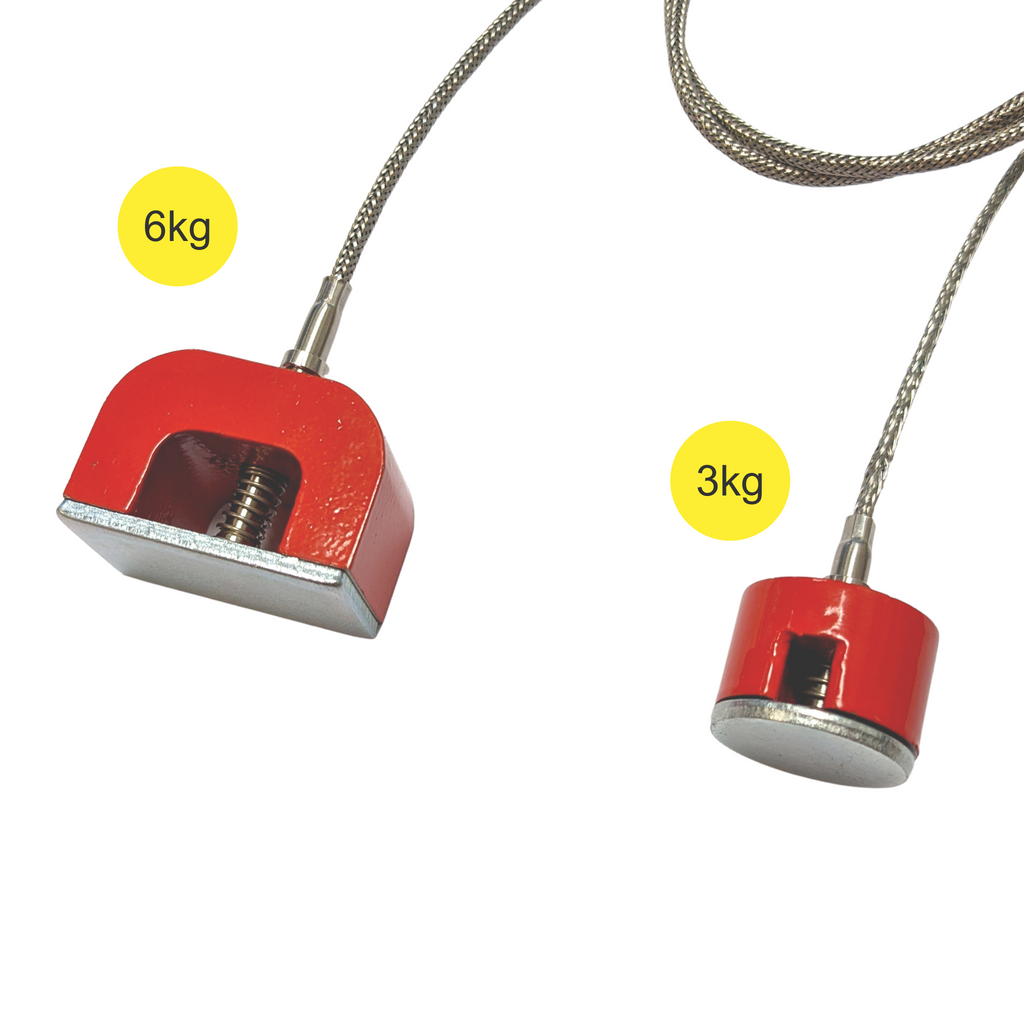

Two versions are available: 6kg pull force rated to 400°C and 3kg pull force rated to 250°C.

Available in Pt100 or Pt1000 and supplied with a over braided lead with 50mm tails.

Type: Pt100 or Pt1000 Class A
Temp Range: -50 - 400 °C
Pull Force: 3kg or 6kg
Lead Material: 7/0.2mm PFA/SSOB
