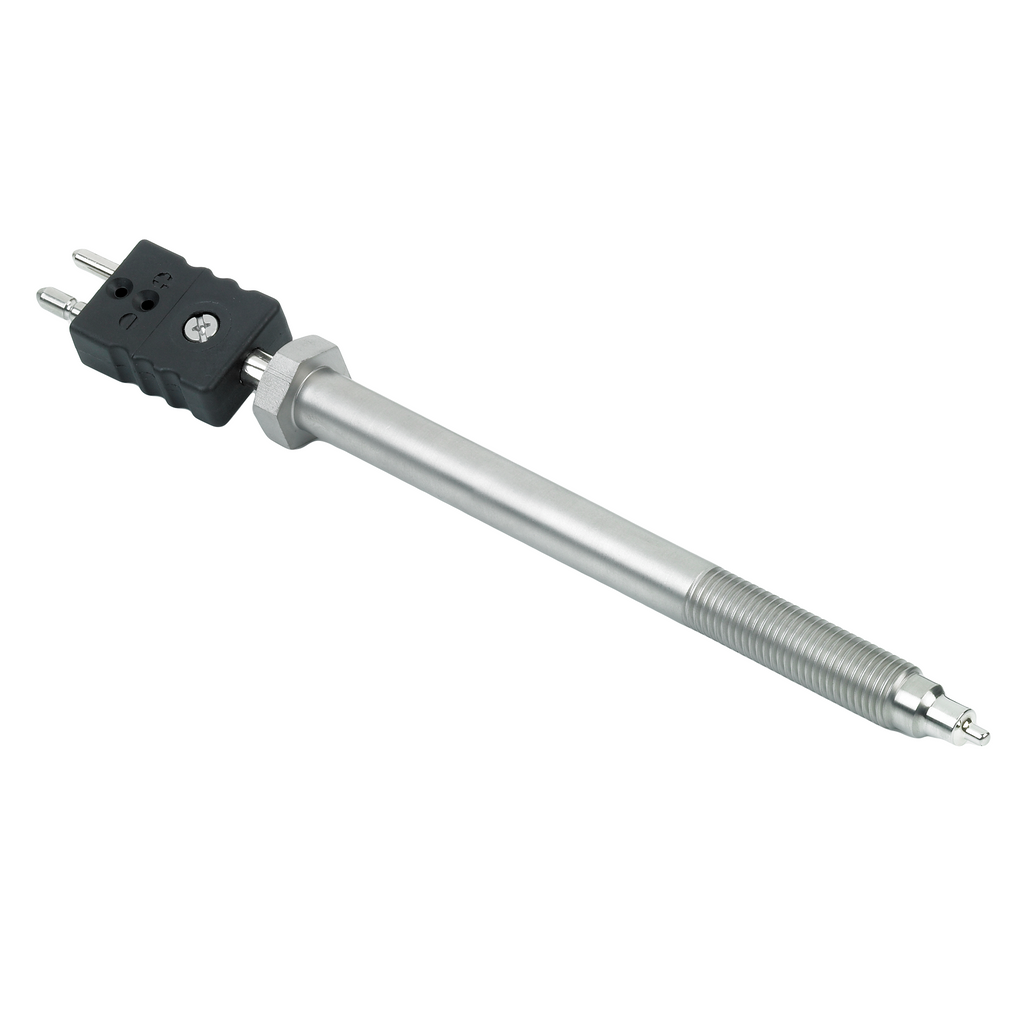

Melt Bolt Thermocouple (400°C)

Name: Melt Bolt Thermocouple (400°C)
Brand: Sterling ITI
SKU: TGPLAK0765MM0062
Price: 96.0 GBP
Availability: InStock

Sterling ITISKU: TGPLAK0765MM0062

Melt bolt thermocouple used for the temperature measurement of molten plastic. Suitable for use up to 400°C.

Type: K

Length: 76mm

Sensing Tip: 5mm

Variant

Price:

£96.00

Stock:

In stock

Quantity:

Melt bolt thermocouple used for the temperature measurement of molten plastic.

A range of temperature sensors designed for high pressure applications in the plastics industry. Rated to 400°C they have a standard 1/2 inch UNF-20 thread, with the ‘bolt’ made from 316 stainless steel and in lengths of 76mm or 152mm.

The thermocouples are available in type J or K calibration and have a grounded junction with an option of either 5mm protruding or flush tips, complete with standard round pin connector termination.

Thread: 1/2 inch UNF-20
Temp Range: 0 - 400 °C
Tip diameter: 3mm
Sheath Material: 316 Stainless Steel
Termination: Standard plug
