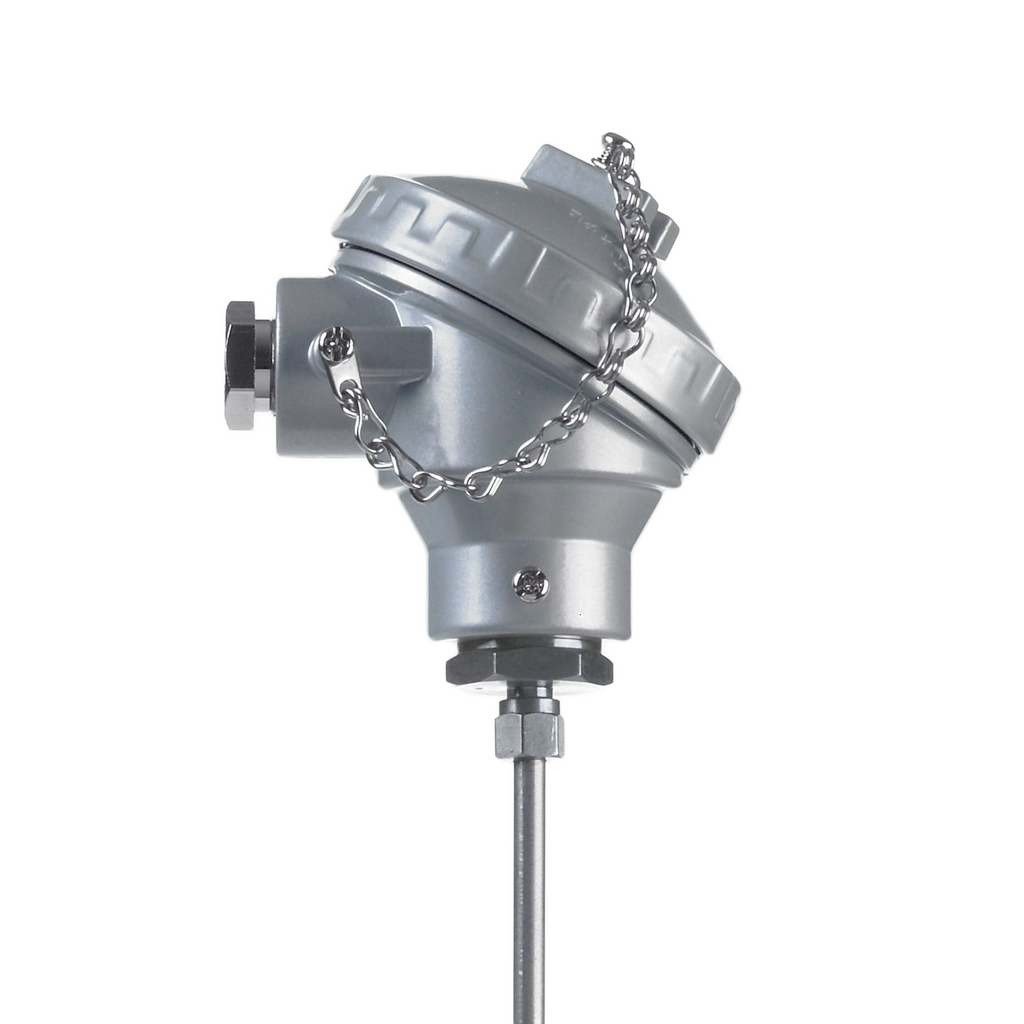

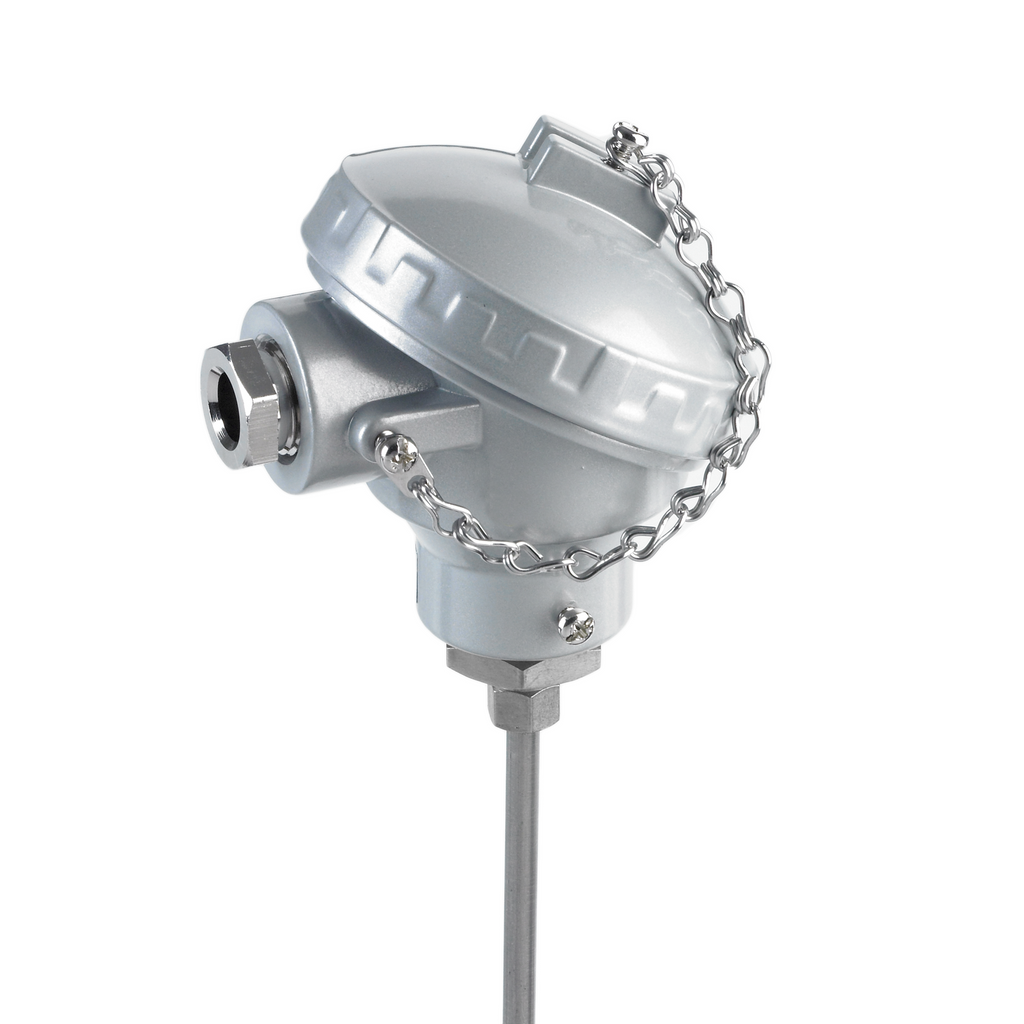

Mineral insulated RTD with standard (KNE) head for higher temperature industrial applications where close accuracy is required.
Pt100 resistance thermometers manufactured from mineral insulated cable are suitable for use up to temperatures of 600°C. The probe can be supplied in various lengths with the sensing element enclosed in the tip of the 6mm diameter stainless steel sheath.
Although shown straight, mineral insulated resistance thermometers can be bent around formers (with a radius of three times the probe diameter) and at angles and shapes to suit the application. They can also be manufactured in very long lengths.
The sensor is terminated with a screw top IP68 (KNE) weather-proof head which is recognised as the industry standard when terminating industrial probes. It has an M20 cable entry and comes with a ceramic terminal block or optional in-head transmitter.
