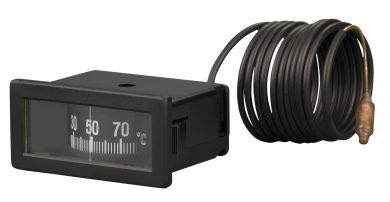

A clip in panel mounted capillary thermometer that has a nominal case size of 58mm x 25mm.
When cutting out the panel please leave an extra 1mm around the case.
These thermometers are designed for applications and use according to European Standard BS EN 13190.
Typical applications would be ovens, boilers, freezers, lab, refrigeration and catering equipment.
Nominal Size: 58mm x 25mm case.
Accuracy: 3%
Scale: Degrees C
Range: -40/+40C, 0/120C
Mounting: Panel mounting, clip in
Ingress: IP40
Case & Bezel: Black ABS/nylon – white 40C range, black 120C range
Window: Crystal clear acrylic
Movement: Liquid expansion
Capillary: Copper 1500mm rear exit, sheathed.
Sensor: 6.5mm diameter 120C, 8.5mm diameter for -40/+40C
Sensor Length: Brass 25mm
Also available in the same temperature ranges in a 62 x 11mm case.
