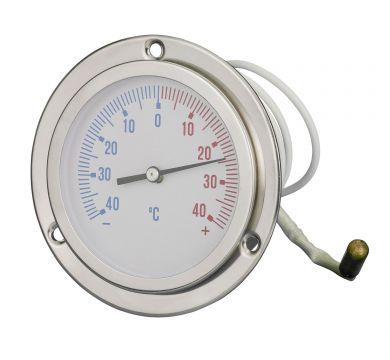

A panel mounted capillary thermometer with front flange that is available in 60, 80 or 100mm diameter size.
When cutting out the panel please leave an extra 2mm, for example the panel cut out for a 100mm device would be 102mm.
These thermometers are designed for applications and use according to European Standard BS EN 13190.
Typical applications would be ovens, boilers, freezers, lab, refrigeration and catering equipment.
Nominal Size: 60, 80, 100mm
Accuracy: 3%
Scale: Degrees C
Range: -40/+40C, 0/120C and 0/350C.
Mounting: Panel mounting, 3 hole front flange
Ingress: IP40
Case & Bezel: 304SS
Window: Crystal clear acrylic
Movement: Liquid expansion
Capillary: Copper 1500mm rear exit, sheathed.
Sensor: 6.5mm diameter 120C & 350C, 8.5mm diameter for -40/+40C
Sensor Length: Brass 25mm
