Pipe Clip RTD (250°C)

Name: Pipe Clip RTD (250°C)
Brand: Sterling ITI
SKU: RSJUB6JXS01M0AP7
Price: 26.0 GBP
Availability: InStock

Sterling ITISKU: RSJUB6JXS01M0AP7

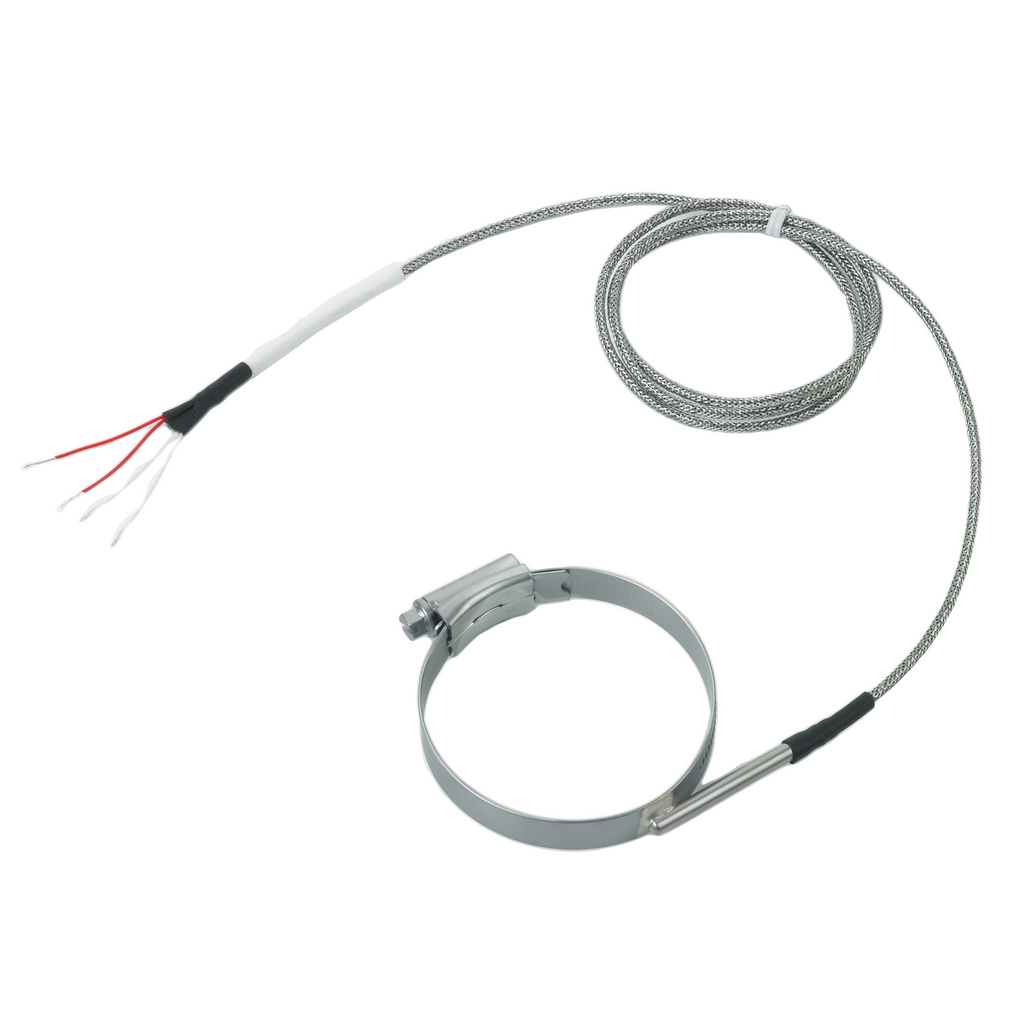

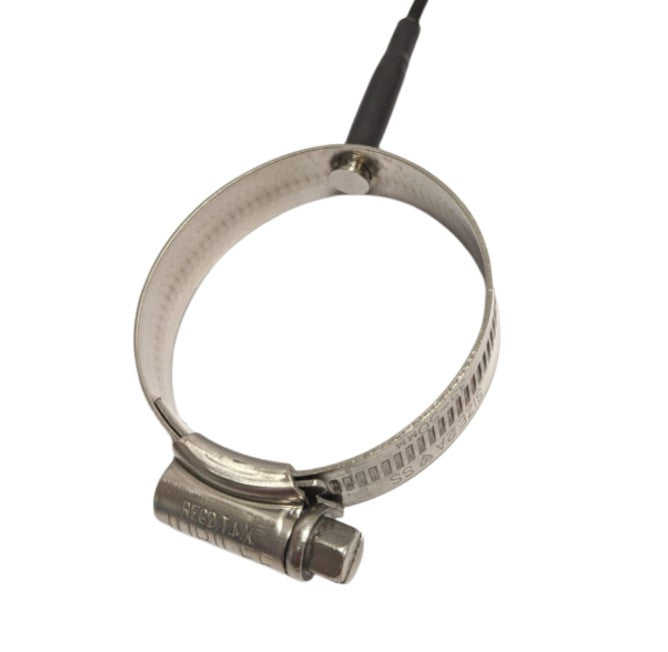

Jubilee style adjustable pipe clip resistance temperature detector used in the temperature measurement of pipes. Suitable for use up to 250°C.

Type: Pt100

Pipe Diameter: 13-20mm

Length: 1m

Variant

Price:

£26.00

Stock:

In stock

Quantity:

Jubilee style adjustable pipe clip resistance temperature detector used in the temperature measurement of pipes.

This range of RTD’s is designed to maximise contact with pipes for direct and permanent temperature measurement. They can be easily installed and replaced and are available in various sizes to suit a range of pipe diameters.

Supplied with a Pt100 or Pt1000 element in a 4-wire configuration enclosed within a stainless steel sheath, it has a 7/0.2mm diameter stranded, PFA insulated, stainless steel over-braided extension cable with 50mm tails.

Type: Pt100 or Pt1000 Class A
Temp Range: -50 - 250 °C
Material: Stainless Steel
To suit pipe diameters: 13-20mm, 20-30mm, 30-50mm, 50-100mm, 150 – 300mm
Lead Material: 7/0.2mm PFA/SSOB
