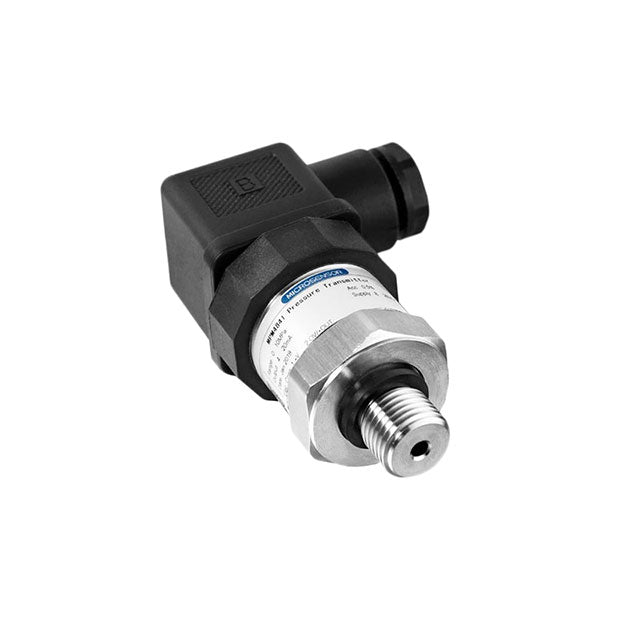

The MPM4841A pressure transducer uses a stable and reliable piezoresistive pressure sensor element, with a conditioning circuit to output a standard 0-10V dc voltage signal.
A compact size of 78mm from the end of the thread to the top of the connector, makes this pressure transmitter a cost effective solution for a wide range of applications.
Pressure type: Gauge
Output: 0-10V dc 3 wire
Power: 12-30Vdc
Accuracy: 0.5% FS
Connection: 1/4 BSP 316SSL
Wetted parts: 316SSL
Weight: <150g
Vibration resistance: 10g(@20Hz~2000Hz)
Temperature: -10/80C (Ambient/Medium)
Storage: -40/70C (Storage)
Protection: IP65
Approvals: CE
OEM discounts for Volume.
We have additional pressure ranges and connections types available.
