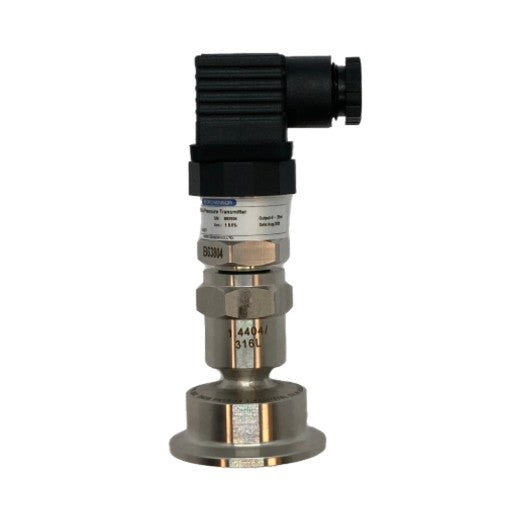

This pressure transmitter with 0-10V output and a flush diaphragm seal is for use with a 1.5” or 2" hygienic Tri-Clamp fitting.
The diaphragm seal separates the instrument and the medium, the pressure is transmitted to the gauge via the system fill fluid which is inside the diaphragm seal assembly.
Please note that a FDA approved fill fluid is used as standard with every hygienic seal assembly.
This design is widely used in the dairy, brewery, food, drink and pharmaceutical applications, 3.1 material certification and calibration can be supplied as an optional extra.
The MPM4841A pressure transmitter uses a stable and reliable piezoresistive pressure sensing element, with a conditioning circuit to output a standard 0-10 Vdc voltage signal.
A compact design, makes this pressure transmitter a cost effective solution for a wide range of applications.
Pressure type : Gauge
Output: 0-10V DC 3 wire
Power: 12-30Vdc
Accuracy: 0.5% FS
Connection: 1.5 inch or 2 inch
Wetted parts: 316SS
Protection: IP65
Approvals: CE
OEM discounts for Volume.
We have additional pressure ranges and connections types available.
