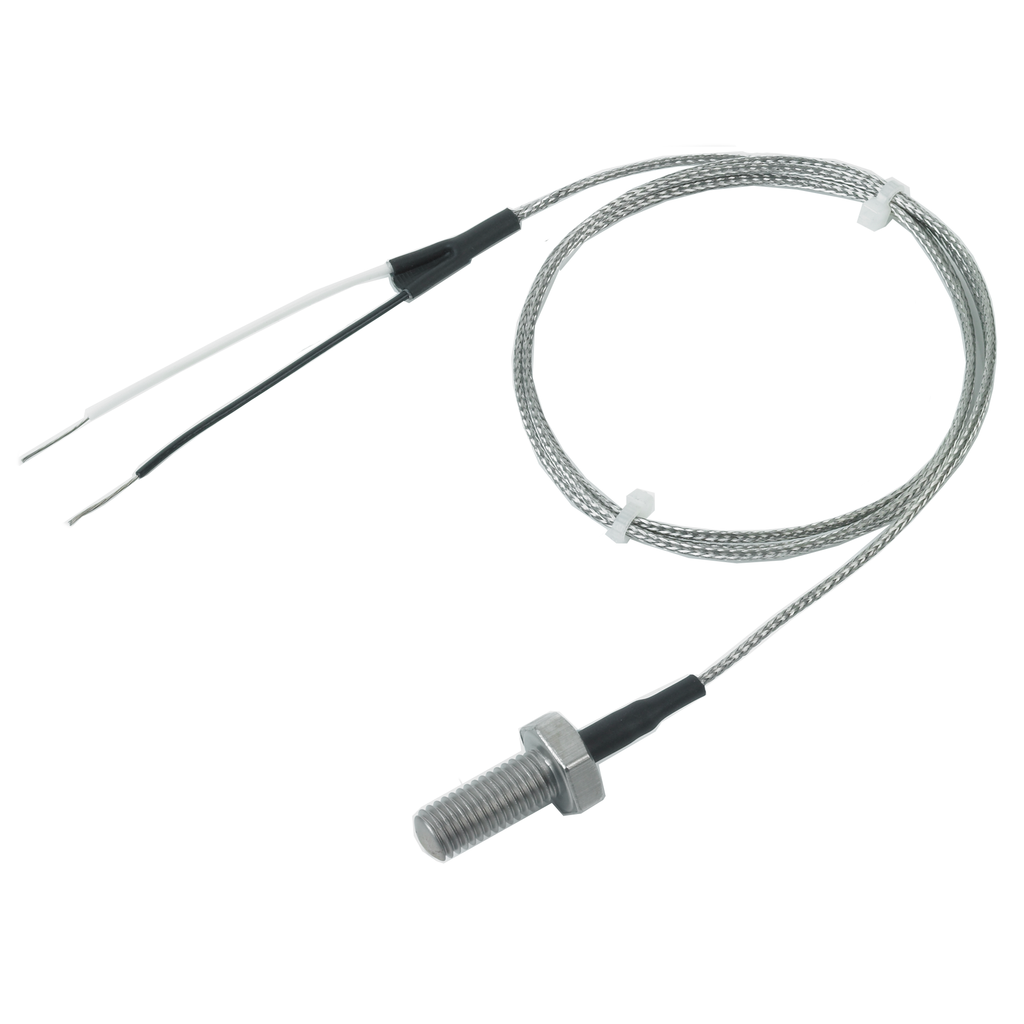

Fast response screw in bolt thermocouples for direct temperature measurement up to 400°C.
The bolt sensor is designed to screw directly into the application to get a faster response and more accurate reading than surface measurement sensors.
Available in bolt sizes M6, M8, M10 or M12 with a thread length of 10mm below the hexagon in either a standard fixed thread or a swivel style thread, the later prevents wires from twisting when screwing the bolt into the application.
Supplied in type K, J or T options, these thermocouples have a grounded junction for direct temperature measurement and 7/0.2mm diameter stranded, fibreglass insulated, stainless steel over-braided extension cable with 50mm tails.
