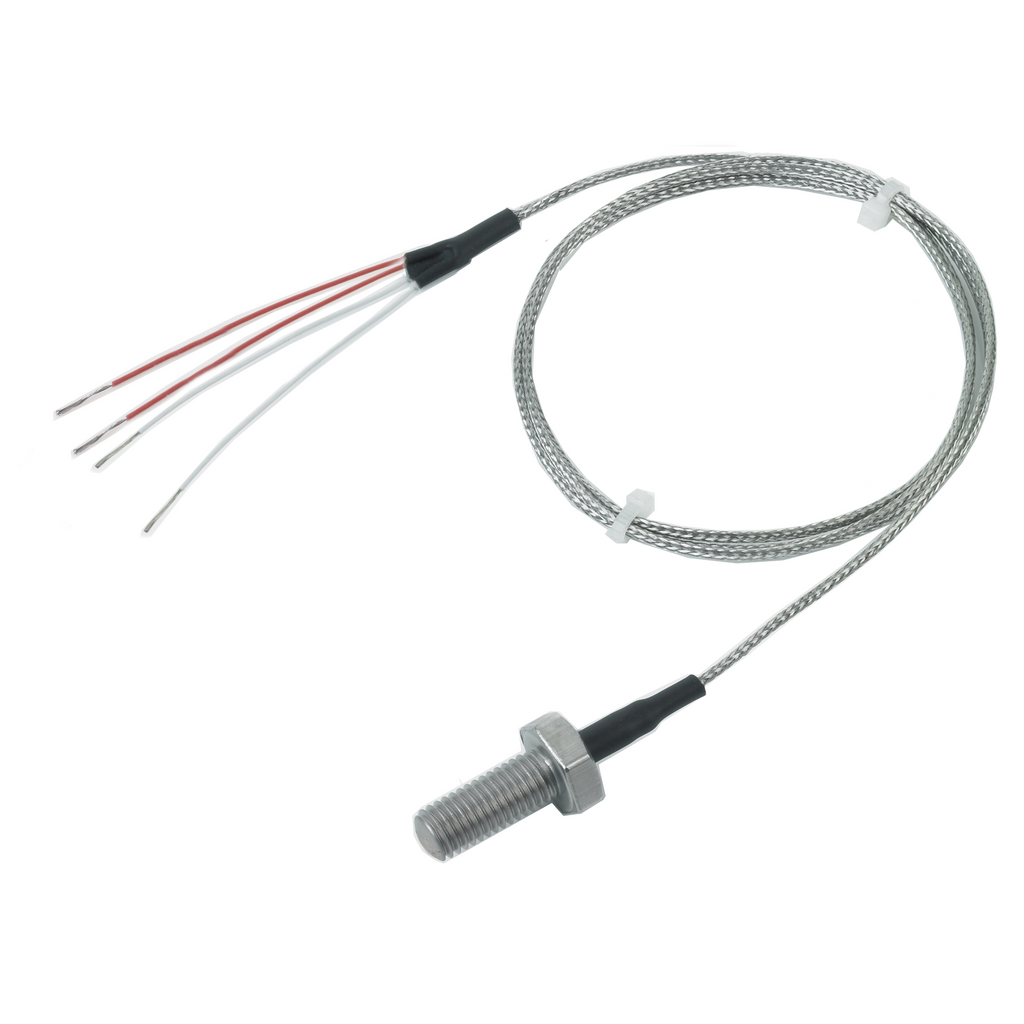

Screw in Pt100 Bolt Sensor, M6, M8, M10, M12 (250°C)

Roll over image to zoom in Click on image to zoom

Screw in Pt100 Bolt Sensor, M6, M8, M10, M12 (250°C)

Name: Screw in Pt100 Bolt Sensor, M6, M8, M10, M12 (250°C)
Brand: Sterling ITI
SKU: RGBOL6M0601M0AJ7
Price: 16.0 GBP
Availability: InStock

Sterling ITISKU: RGBOL6M0601M0AJ7

Fast response Pt100 screw in bolt resistance temperature detectors for direct temperature measurement up to 250°C.

Thread: M6

Lead Length: 1m

Variant

Price:

£16.00

Stock:

In stock

Quantity:

Fast response Pt100 screw in bolt resistance temperature detectors for direct temperature measurement.

The 4-wire class A RTD bolt sensor is designed to screw directly into the application to get a faster response and more accurate reading than surface measurement sensors.

Available in bolt sizes M6, M8, M10 or M12 with a thread length of 10mm below the hexagon, these RTDs have a Pt100 flat film detector and a 7/0.2mm diameter PFA insulated with stainless steel over-braid extension cable and 50mm tails.

Type: Pt100 Class A
Temp Range: -50 - 250°C
Diameter: M6, M8, M10, M12
Bolt Material: 316 Stainless Steel
Lead Wire Material: 7/0.2mm PFA/SSOB Insulated
