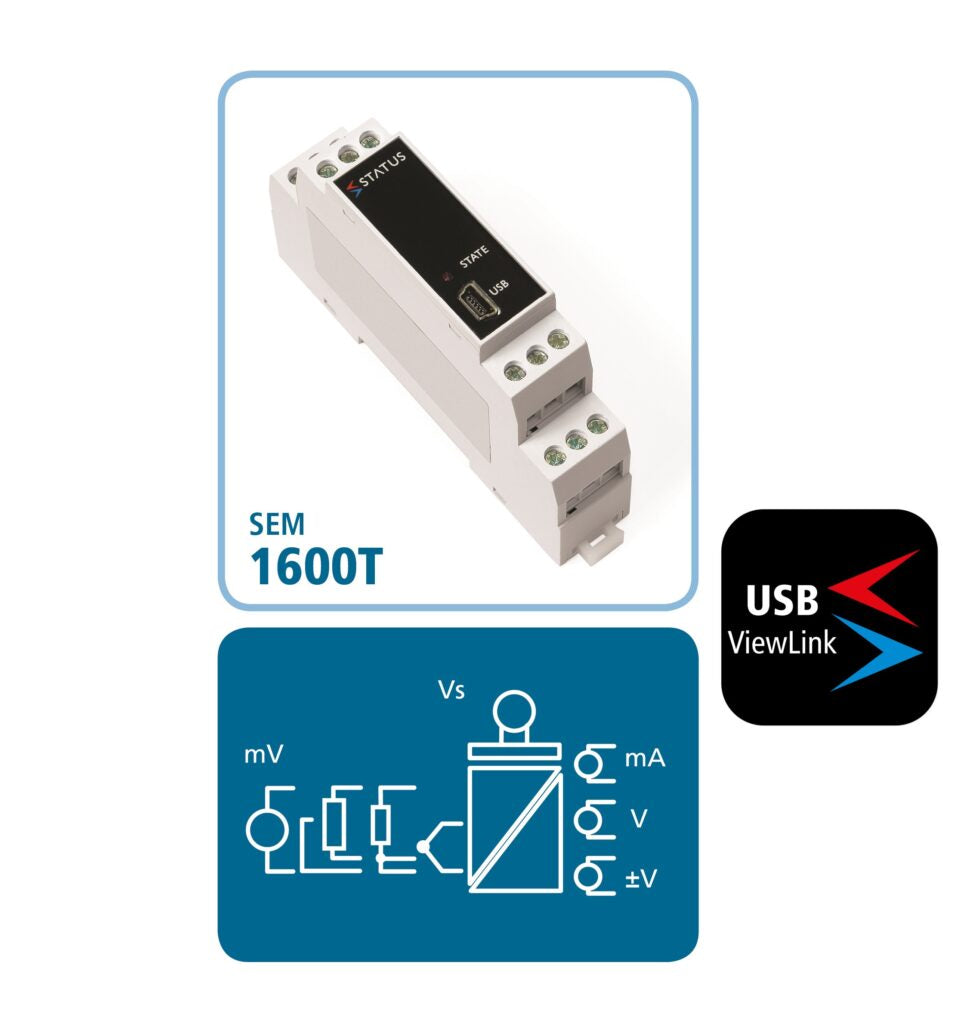

The SEM1600T accepts RTD, Potentiometer or Thermocouple sensors. It provides either voltage, bipolar voltage or current re-transmission signals that can be scales over any part of the input range
Other sensor characteristics, or your own 22 point linearisation characteristic (for potentiometers, linear resistance or mV sensors) can be downloaded into the product enabling you to adapt it exactly to your application.
For ease of use, the SEM1600T, offers a high efficiency switch mode power supply is fitted as standard and does not require any adjustment between ac or dc applications. Operating voltages are (10 to 48) V dc and (10 to 32) V ac
Designed for ease of use, the temperature signal conditioner has a direct USB interface is fitted for quick and easy configuration. Just connect a standard USB cable between the SEM1600 and your PC and you’re ready to go. Using our free configuration software, your PC will automatically read the current configuration data and guide you through any changes you wish to make.
