SEM1605TH Din Rail Temperature Transmitter Pt1000 & Thermistor Input, mA Output

Roll over image to zoom in Click on image to zoom

SEM1605TH Din Rail Temperature Transmitter Pt1000 & Thermistor Input, mA Output

Name: SEM1605TH Din Rail Temperature Transmitter Pt1000 & Thermistor Input, mA Output
Brand: Sterling ITI
SKU: SEM1605TH
Price: 89.3 GBP
Availability: InStock

Sterling ITISKU: SEM1605TH

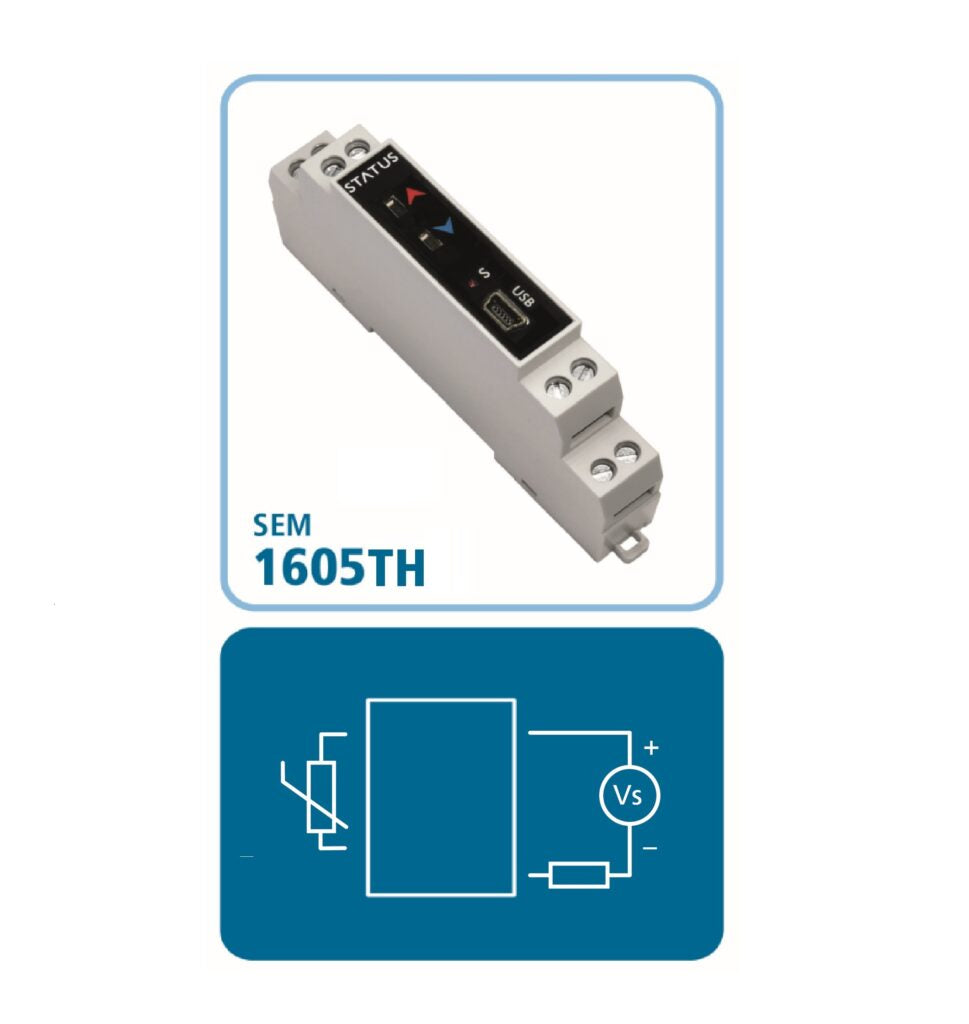

The SEM1605TH is a DIN rail mounted temperature transmitter from Status Instruments. It has been designed to accept most common thermistor temperature sensor inputs together with Pt1000 and Pt500 RTD inputs and provide the user with a standard two wire (4 to 20) mA output signal. The output signal is linear to temperature.

Input: PT1000 & Thermistors

Range: Default Range

Variant

Price:

£89.30

Stock:

In stock

Quantity:

The SEM1605TH is a DIN rail mounted temperature transmitter from Status Instruments. It has been designed to accept most common thermistor temperature sensor inputs together with Pt1000 and Pt500 RTD inputs and provide the user with a standard two wire (4 to 20) mA output signal. The output signal is linear to temperature.

Designed for ease of use, our latest USB interface is fitted for quick and easy configuration. Just connect a standard USB cable between the SEM1605TH and your PC.

Our free configuration software will guide you through any changes you wish to make. To further help save time, the SEM1605TH does not need to be wired to a power supply
during the configuration process, it is powered via the USB interface from your PC.

Accepts Thermistor or Pt1000 Sensors
Uses Standard USB Cable
10 to 30 V DC supply
(4 to 20) mA Two Wire Output
Calibration and Output Trim Without a PC
