SEM206/P/V Programmable Pt100 In Head Transmitter (0-10V)

Roll over image to zoom in Click on image to zoom

SEM206/P/V Programmable Pt100 In Head Transmitter (0-10V)

Name: SEM206/P/V Programmable Pt100 In Head Transmitter (0-10V)
Brand: Sterling ITI
SKU: SEM206/P/V
Price: 78.0 GBP
Availability: InStock

Sterling ITISKU: SEM206/P/V

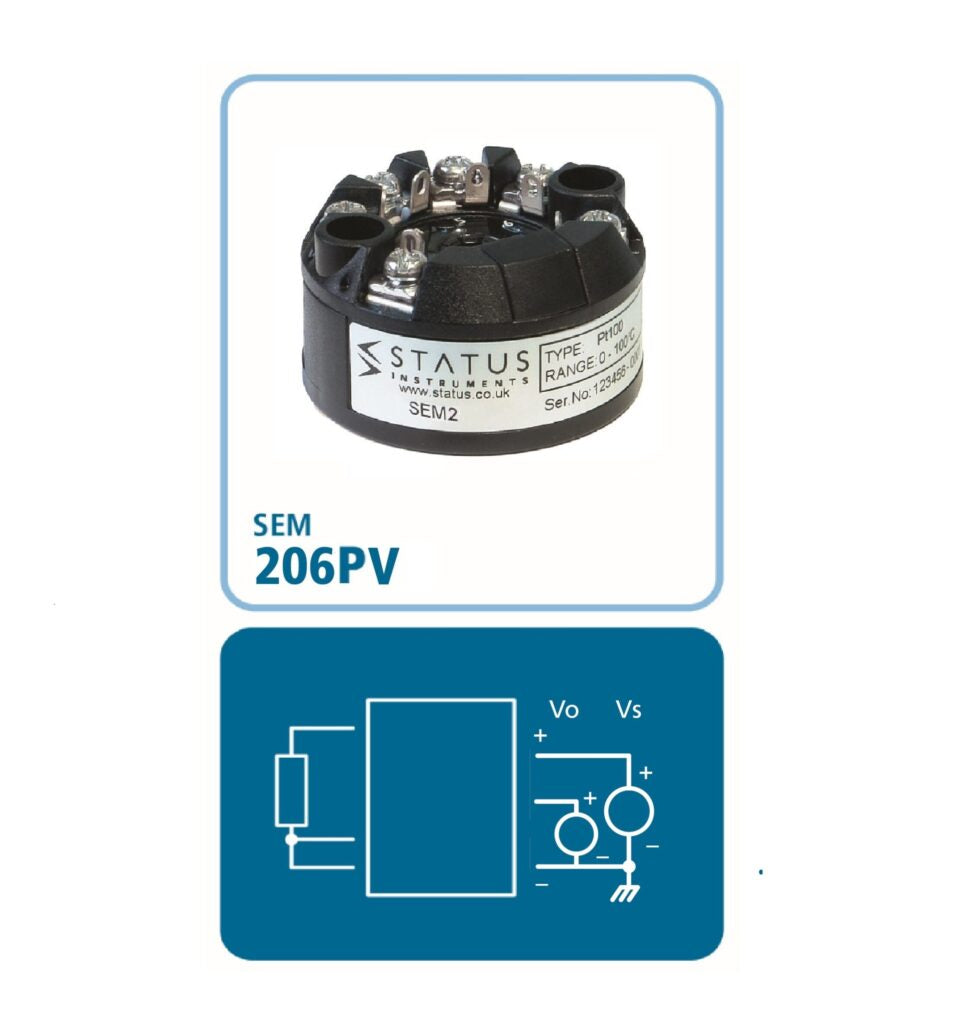

The SEM206PV is a cost-effective digital in-head transmitter that accepts Pt100 temperature sensors and converts sensor output over a configured range to a standard industrial (0 to 10) V control signal. The output is linear to temperature.

Input: Pt100

Range: Default Pt100 0/100 deg C

Variant

Price:

£78.00

Stock:

In stock

Quantity:

The SEM206PV is a cost-effective digital in-head transmitter that accepts Pt100 temperature sensors and converts sensor output over a configured range to a standard industrial (0 to 10) V control signal. The output is linear to temperature.

PC configuration allows the user to select range, units and burnout direction, without requiring calibration equipment. Configuration is performed quickly using our USB port driven configurator by simply connecting two clips to the SEM206P loop terminals and following the software instructions

If required, the desired range can be specified at the time of order, removing the need for user configuration. Otherwise if the range is not specified then the transmitter will be shipped with the default range of Pt100 0/100 deg C.

Order USB-CONFIG-MK3 for setting at your site.

Pt100 input
15-30Vdc supply required
Configuration kit extra
0-10V 3W output
Can be factory set at time of order
