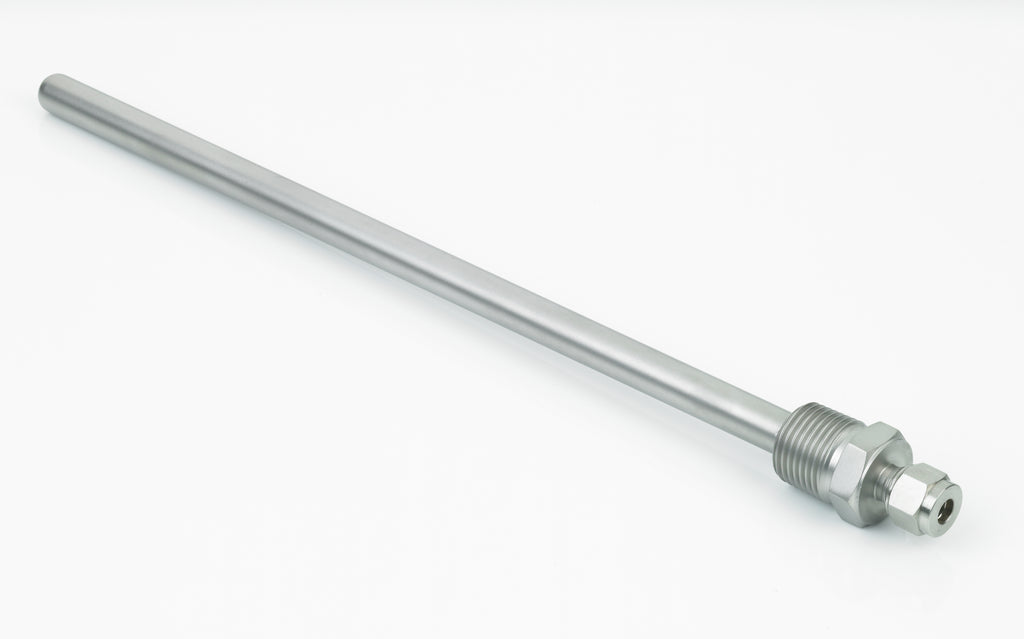

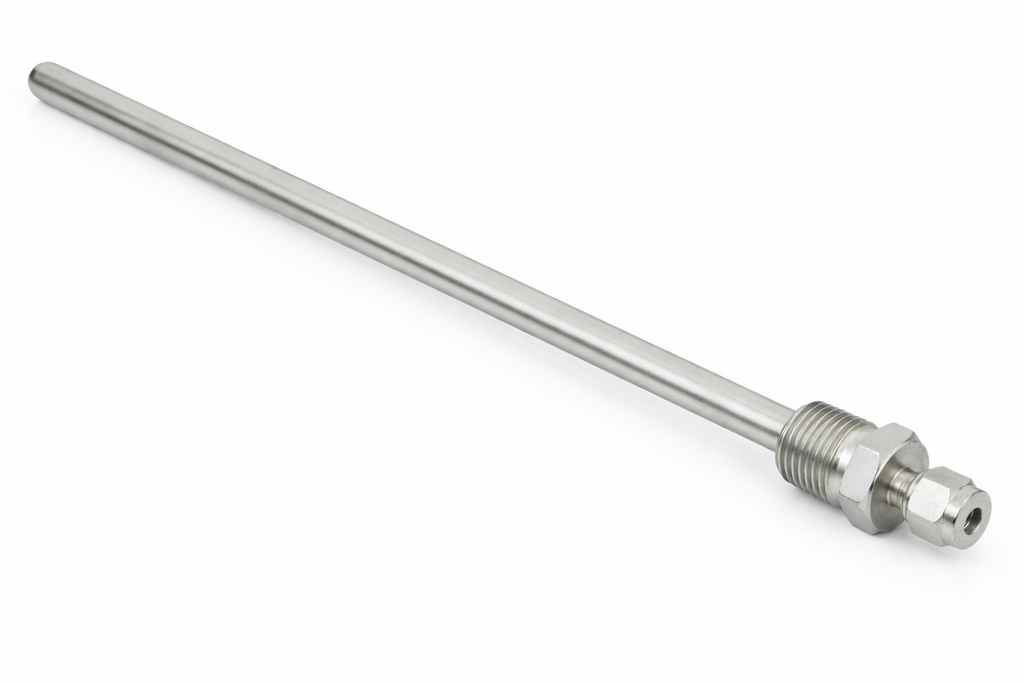

Fabricated Thermowell with integral compression fitting to suit 3.0mm or 6.0mm diameter sensors.
Designed for use with thermocouples or resistance thermometers (Pt100’s) this range of fabricated pockets is manufactured in the UK from 316 stainless steel and has an integral compression fitting and olive.
The outside diameter is 11mm for the 6mm probe versions, and 6mm for the 3mm probe versions.
Available in NPT, BSP tapered or BSP parallel male threads to screw into the process; supplied in standard 50, 100, 150, 200, 250, 300 & 500mm lengths.
The use of a thermowell allows the interchange of sensors without interrupting or loss of integrity of the application.
Our fabricated thermowells have many options available and can be manufactured to suit your needs with BSP and NPT parallel and tapered threads, lengths made to order and diameters to suit any probe, such as 3mm, 8mm, 10mm or 12mm.
