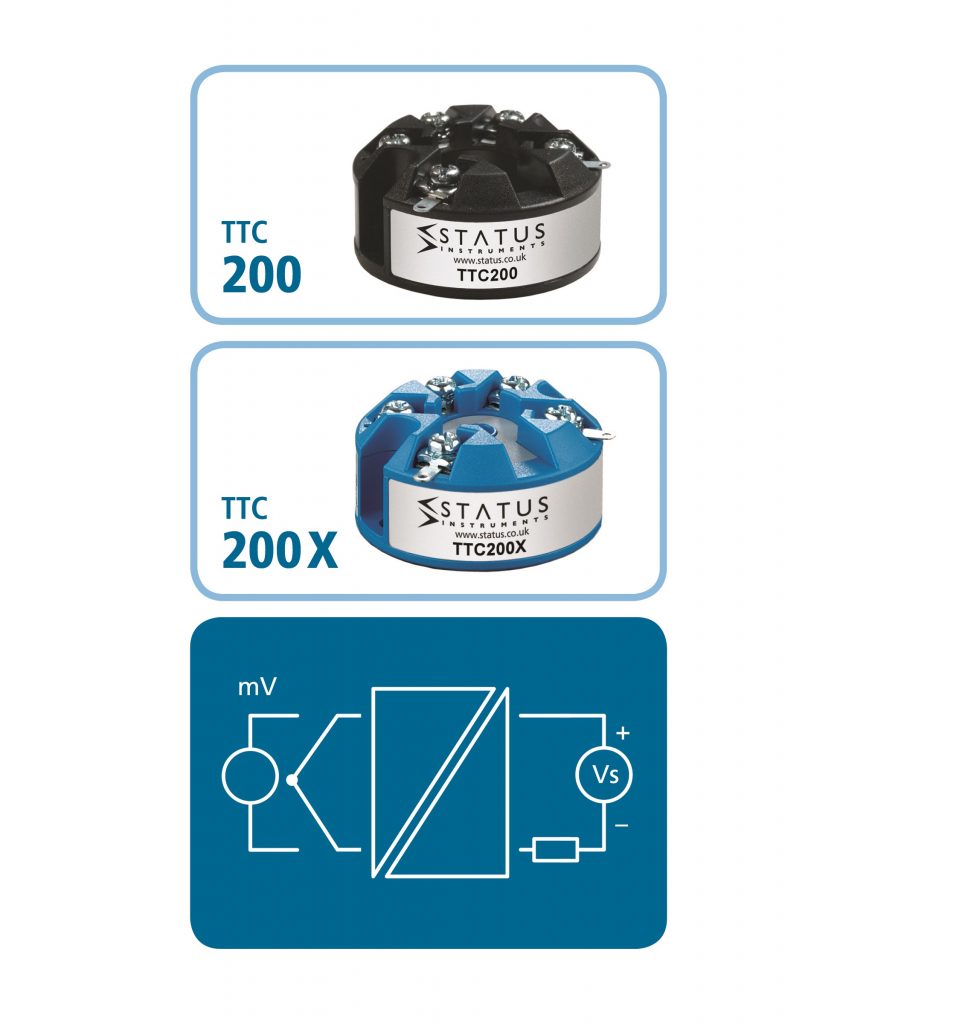

The TTC200 thermocouple temperature transmitter accepts most commonly used thermocouple and mV sensors. It generates an industry standard (4 to 20) mA transmission signal over a programmed process range. There is a version, (TTC200X) approved for use in hazardous areas and is approved to ATEX, IECEx and UKEX.
The product can be easily programmed using our free USB Speedlink software and a standard USB lead (safe area version). The mV input also has a linearisation feature allowing the mA output to act as required over 22 points of the input signal.
Isolation is a standard feature to overcome any potential ground loop effects and a sensor referencing facility enables the transmitter to be calibrated to a particular sensor.
The product also comes with a calibration feature so both the offset and span can be adjusted to match a particular temperature sensor when applied to a known reference temperature.
Order USB-CONFIG-MK3 or USBX-CONFIG-KIT for setting at your site.
