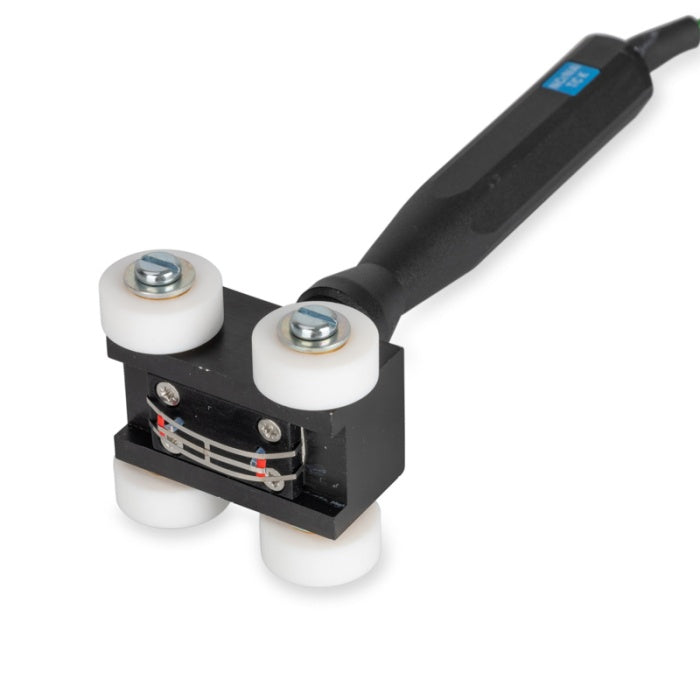

Hand Held Thermocouples

The main difference between a standard and a miniature thermocouple connector lies in their size, design, and typical applications. Standard thermocouple connectors are larger, have round pins, more robust, and often used in industrial settings where durability and secure connections are critical. Their size makes them easier to handle, especially when wearing gloves or working in environments where quick and reliable connections are needed.

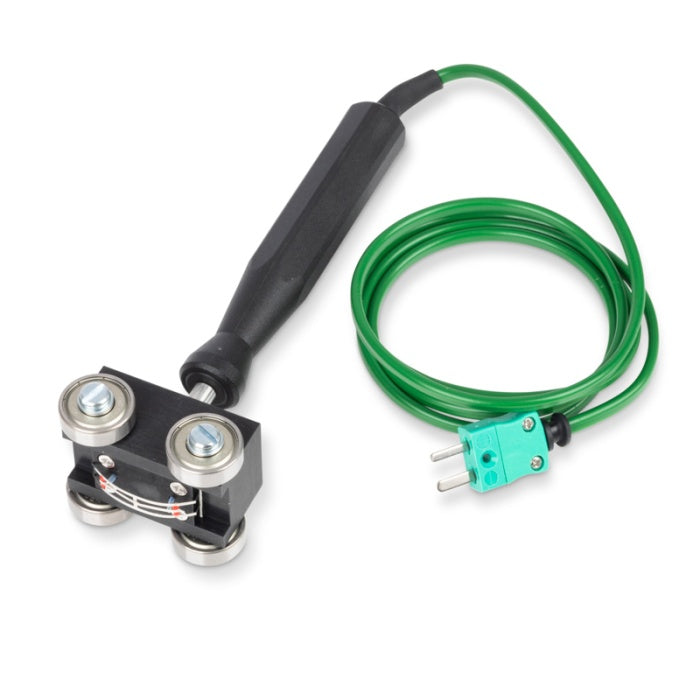

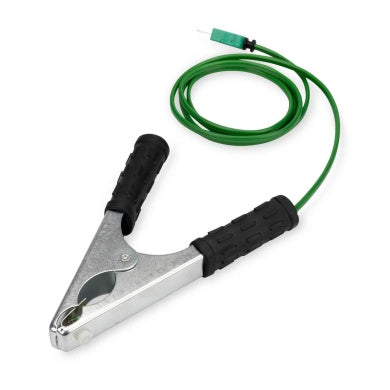

Miniature thermocouple connectors, on the other hand, are smaller, have flat blades and more compact. They are often used in laboratory, testing, or research applications where space is limited, and multiple connections may be required in a confined area. Despite their smaller size, they provide the same accuracy and functionality as standard connectors.

Both connector types are available in various thermocouple materials and polarities, ensuring compatibility with different thermocouple types. The choice between standard and miniature connectors generally depends on the space available, the environment, and the ease of handling required.

A thermocouple is a temperature-measuring device made from two dissimilar metal wires joined at one end, forming a junction. When this junction experiences a temperature change, it produces a small voltage due to the Seebeck effect. This voltage varies with temperature and can be measured to determine the temperature at the junction.

Thermocouples are widely used in various industries due to their durability, low cost, and the ability to measure a broad temperature range. Common types include Type K, J, T, and N, each are suited for specific temperature ranges and applications. They are often used in furnaces, engines, ovens and other industrial processes where temperature monitoring is essential.

Thermocouples do not require an external power source, making them easy to use and reliable. However, their accuracy can be influenced by electrical noise or incorrect calibration. Despite this, thermocouples remain one of the most popular tools for temperature sensing across many fields.

A thermocouple works based on the Seebeck effect, which states that when two dissimilar metals are joined at one end and there is a temperature difference between the joined end (hot junction) and the other ends (cold or reference junction), a small voltage is generated. This voltage is directly related to the temperature difference. Many temperature displays have a thermocouple circuit that measures this voltage and converts it into a temperature reading.

The hot junction is placed where temperature measurement is needed, while the cold junction is kept at a known reference temperature. Because different metal combinations produce different voltage responses, various types of thermocouples (such as Type K, J, or T) exist for different applications. Thermocouples are popular due to their wide temperature range, fast response time, and rugged design.

Thermocouples come in various types, classified by the combination of metals used and their temperature ranges, sensitivities, and applications. The most common types include Type K, J, T, E, N, R, S, and B.

Type K (Nickel-Chromium/Nickel-Alumel) is the most widely used, suitable for general-purpose use up to about 1300°C. Type J (Iron/Constantan) works well in lower temperatures (up to 750°C) but oxidizes quickly in moist atmospheres. Type T (Copper/Constantan) offers excellent accuracy at low temperatures,  and they are often used for cryogenic applications. Type E (Chromel/Constantan) provides a stronger signal and is good for low-temperature applications. Type N (Nicrosil/Nisil) is stable and accurate at high temperatures, making it suitable for industrial use.

For high-temperature applications, Type R, S and B (all using platinum alloys) are used. These types are often used in laboratories or in the metal processing industries.
